Description
Product Description

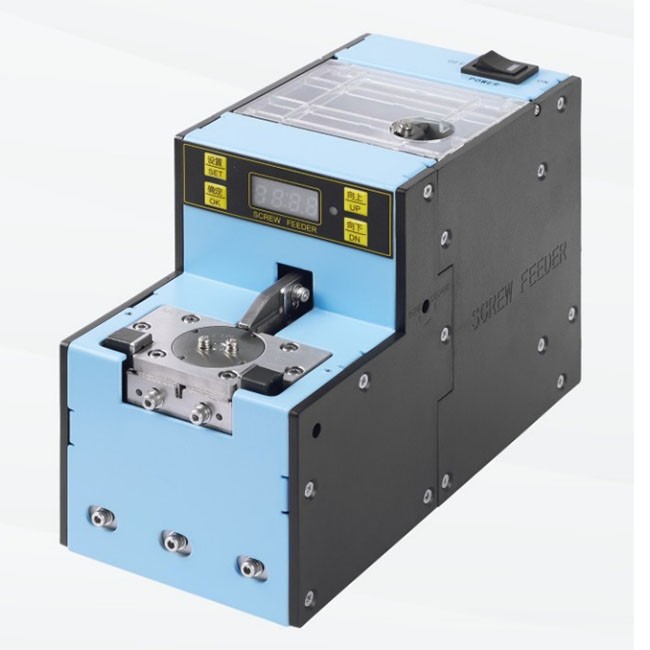

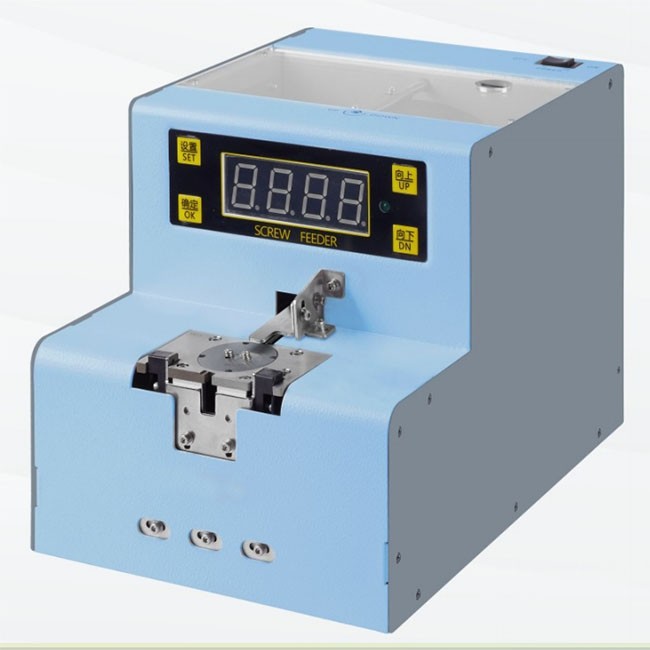

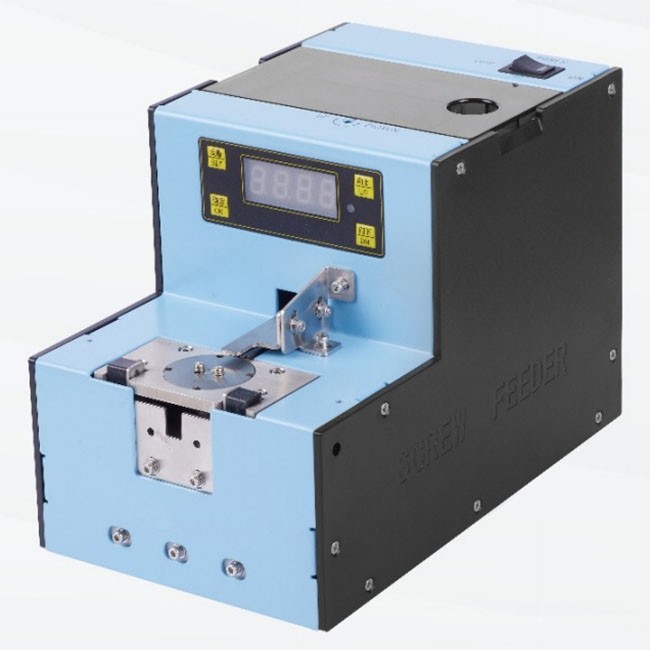

This product is high precision automatic screw feeder (with signal output), suitable for a variety of automatic screw fastening equipment feeding system, with signal terminal, easy to communicate with the equipment.
Specification
Model
AT-M15
AT-L18
AT-D88
Dimensions
L170*W80*H120MM
L205*W126*H153MM
L270*W173*H189MM
Wight
1.8KG
2.8KG
51KG
Input voltage
AC110V~240V
AC110V~240V
AC110V~240V
Output voltage
DC15V
DC15V
DC15V
Applicable scene
Machine use
Machine use
Machine use
Feeding mode
Turntable
Turntable
Turntable
Applicable screw
M0.8-M2.0mm, Length≦10
M1.5-M5.0mm, Length≦15
M2.0-M6.0mm, Length≦28
Product Features
Wide Application Range
Applicable to various screw types and lengths like M1.2 - M5.0 standard, special, short, self-tapping, and washer screws. Especially suitable for precision environments like smartphones and smart watches.
Adjustable Work Efficiency
Feeding and vibration are independently controlled. Delay time can be set freely. Gear feeding turntable and quartering disc are controllable separately. Turntable speed adjustable according to screws for different operations.
Smooth Operation
Screws run in drum. Incorrectly oriented screws fall into drum for next cycle. Rarely gets stuck in normal use.
Screw Counting Function
Equipped with digital panel for parameter adjustments and automatic counting.
Fault Alarm Function
Indexing plate reverses on jam and resumes forward rotation when normal. Alarm activates on abnormal conditions (lack of materials).
Greatly Improved Production Efficiency
Screws are auto-indexed (90°) to pickup port for direct access without manual correction.

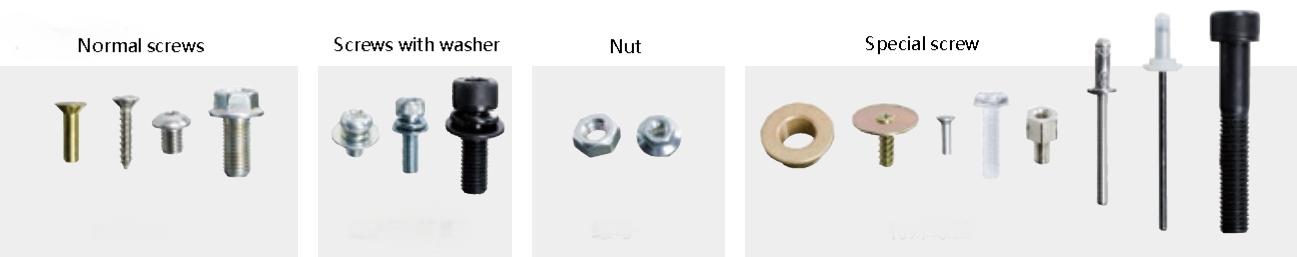

Applicable screw
