Description
PRODUCT DESCRIPTION

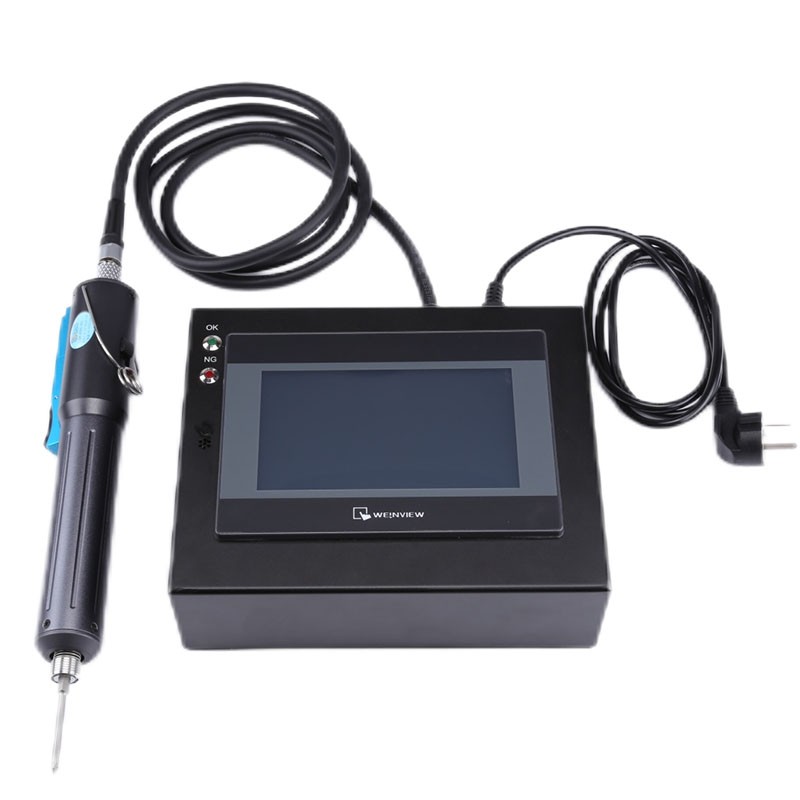

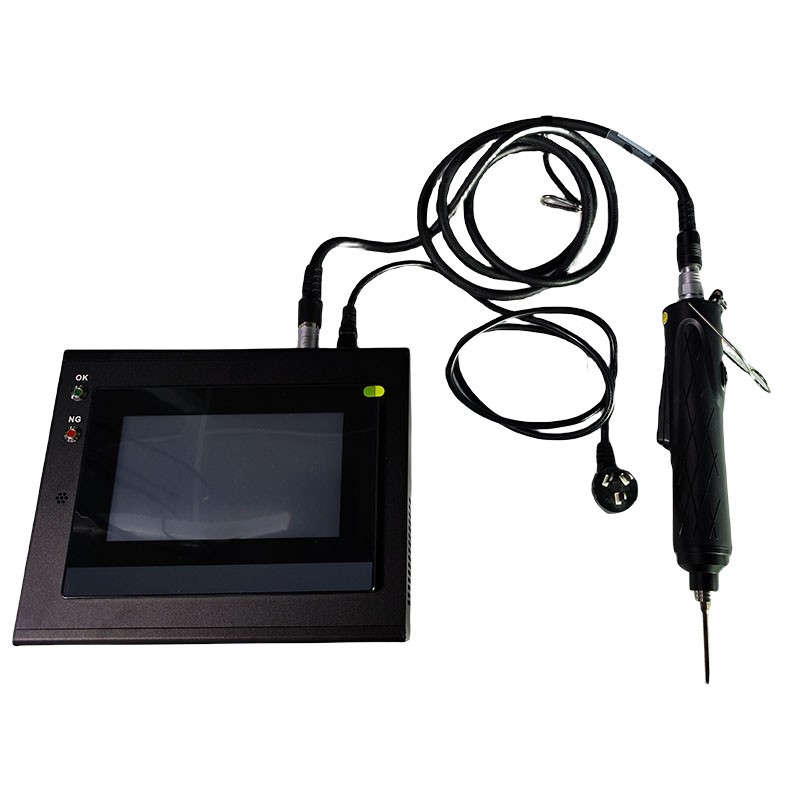

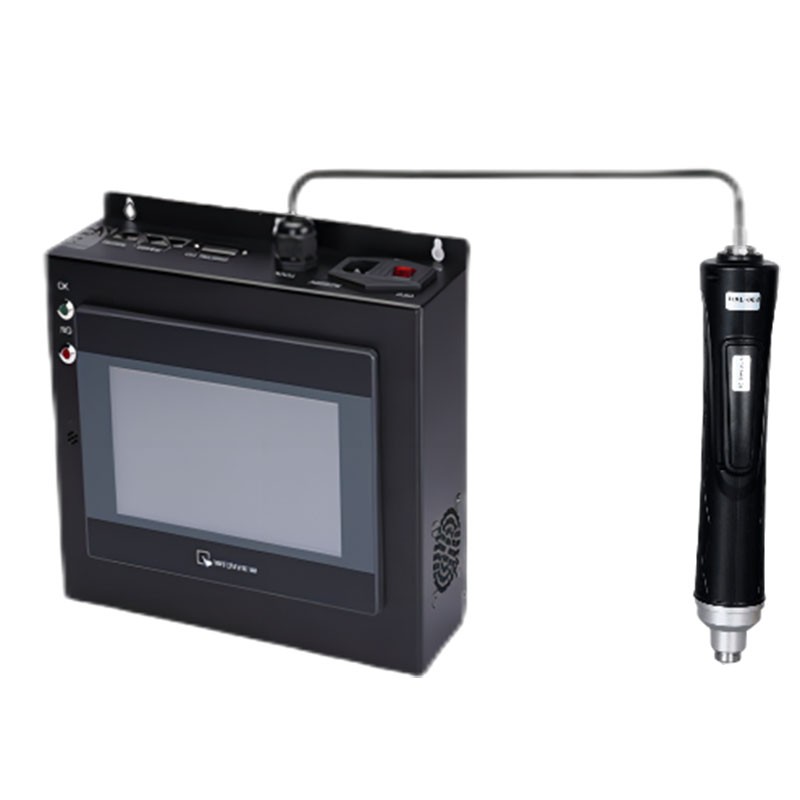

The intelligent electric screwdriver is a high-tech power tool that can precisely control torque, has programmable functions, and offers advanced features for efficient and accurate fastening operations.
SPECIFICATION
|
Model |
Torque Force |
RPM |
Weight(KG) |
Torque Accuracy |
Voltage |
|
DP-HS-001 |
0.1-0.8(Kgf.cm) |
Automatic Mode: 30-1200 |
0.35 |
±5% |
AC:220 |
|
0.01-0.08(N.m) |
High-speed Mode: 30-1800 |
AC:220 |

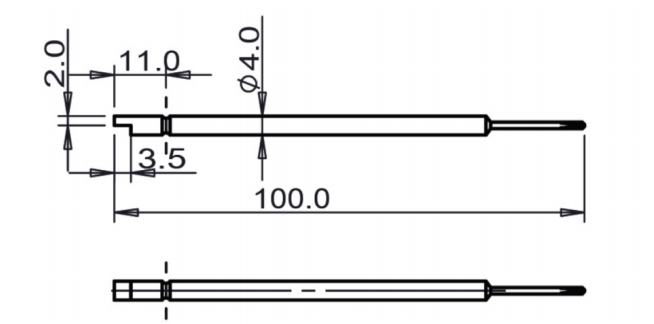

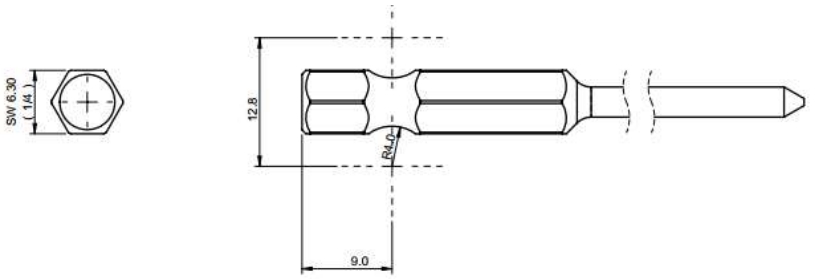

Applicable screw bit
Intelligent screwdrivers flow diagram
Functional characteristics
Traceable: The lock fastening result data can be displayed, stored, exported, and uploaded to the MES system;
Maintenance-free: Adopting high-end imported accessories with a long service life, eliminating the need for frequent inspection and maintenance;
Multi-task: IO or communication can switch 16 kinds of task parameters, and each task supports 5 tightening steps and 2 loosening steps;
With feedback: Judgment of floating height/slipping teeth, status light display, voice broadcast, and torque result feedback;
Easy to use: Simple installation, concise debugging interface, providing secondary development interfaces and technical support;
