Description
PRODUCT DESCRIPTION

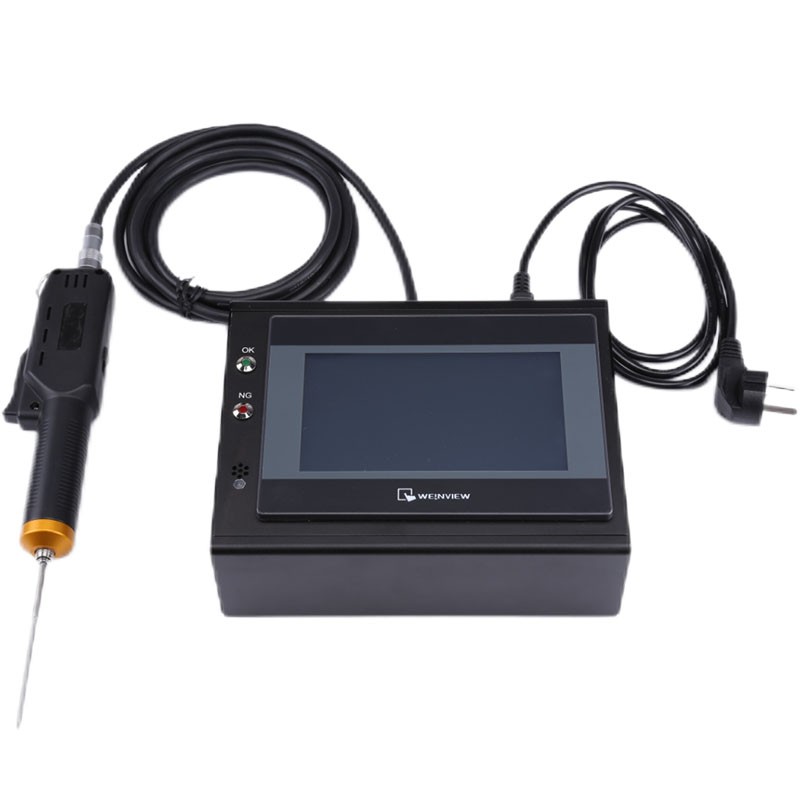

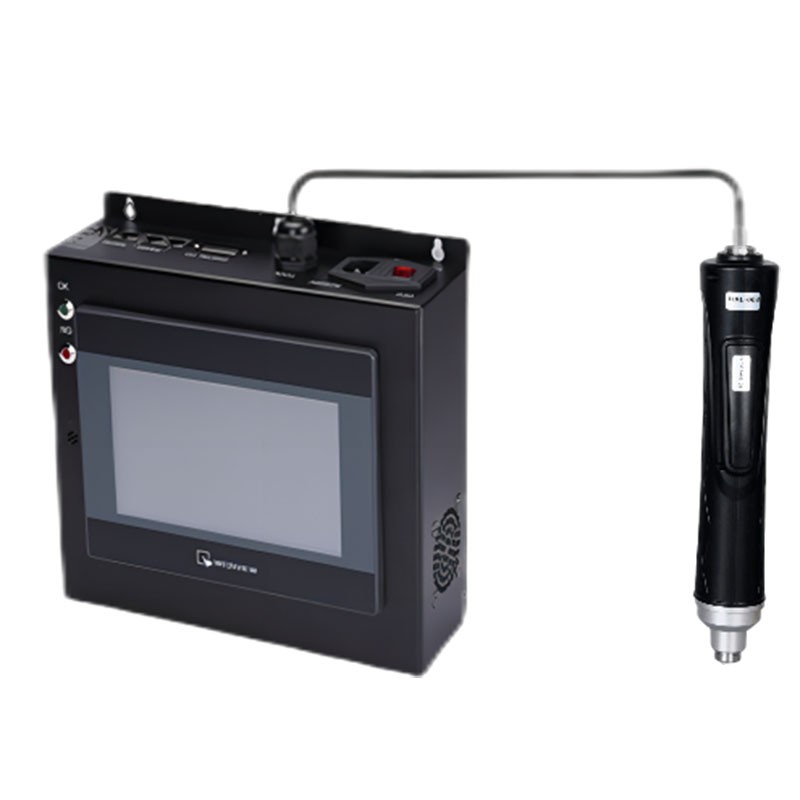

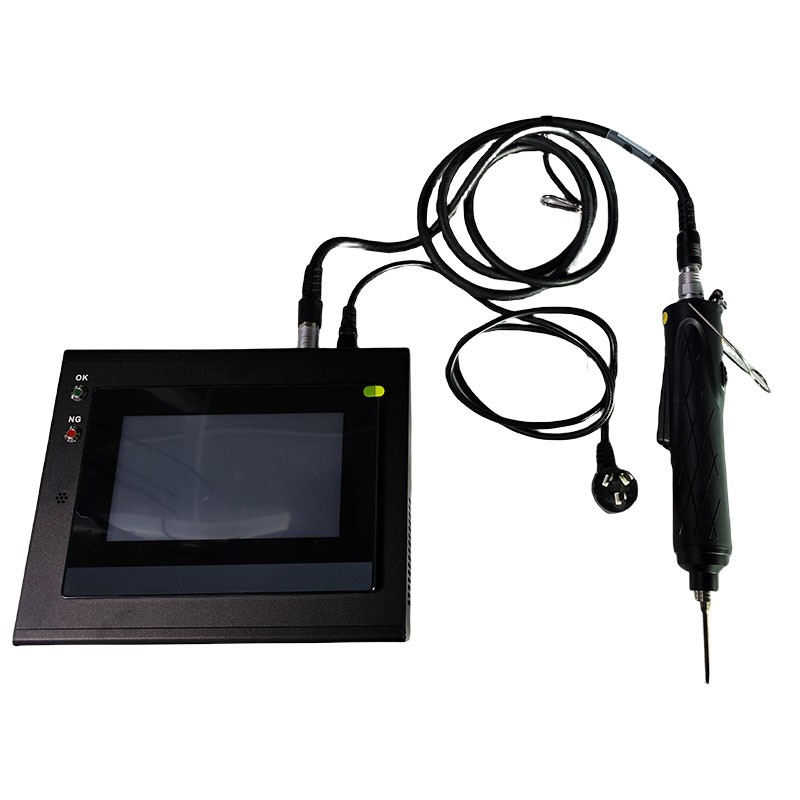

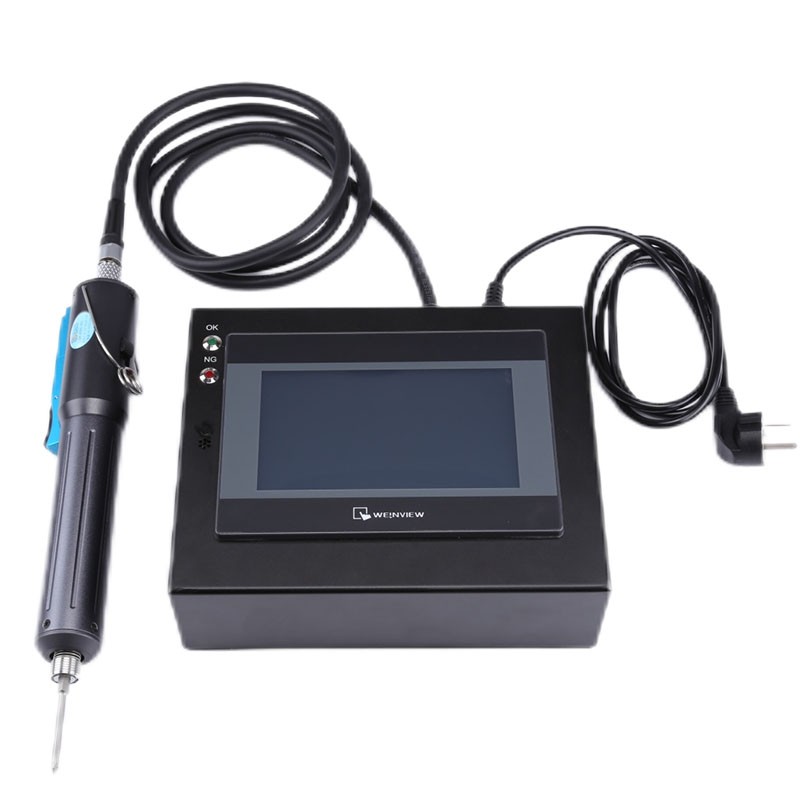

The intelligent electric screwdriver is a high-tech power tool that can precisely control torque, has programmable functions, and offers advanced features for efficient and accurate fastening operations.
SPECIFICATION
DP-HL-001
0.3-2.0(Kgf.cm)
Automatic Mode: 30-1200
0.35
±5%
AC: 220
0.03-0.2(N.m)
High-speed Mode: 30-1800
DP-HL-002
0.2-1.5(Kgf.cm)
Automatic Mode: 30-2000
0.25
±5%
AC: 220
0.02-0.15(N.m)
DP-HL-003
0.5-5.0(Kgf.cm)
Automatic Mode: 30-2000
0.25
±5%
AC: 220
0.05-0.5(N.m)
DP-HL-004
1.0-7.0(Kgf.cm)
Automatic Mode: 30-1000
0.25
±5%
AC: 220
0.1-0.7(N.m)

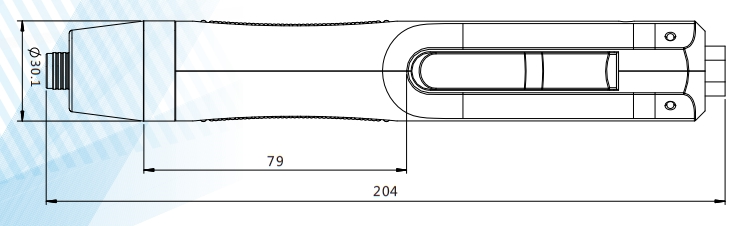

DP-HL-001 SIZE DP-HL-002/003/004 SIZE
Applicable screw bit
Intelligent screwdrivers flow diagram
Functional characteristics
Traceable: The lock fastening result data can be displayed, stored, exported, and uploaded to the MES system;
Maintenance-free: Adopting high-end imported accessories with a long service life, eliminating the need for frequent inspection and maintenance;
Multi-task: IO or communication can switch 16 kinds of task parameters, and each task supports 5 tightening steps and 2 loosening steps;
With feedback: Judgment of floating height/slipping teeth, status light display, voice broadcast, and torque result feedback;
Easy to use: Simple installation, concise debugging interface, providing secondary development interfaces and technical support;
