Description
Why us?

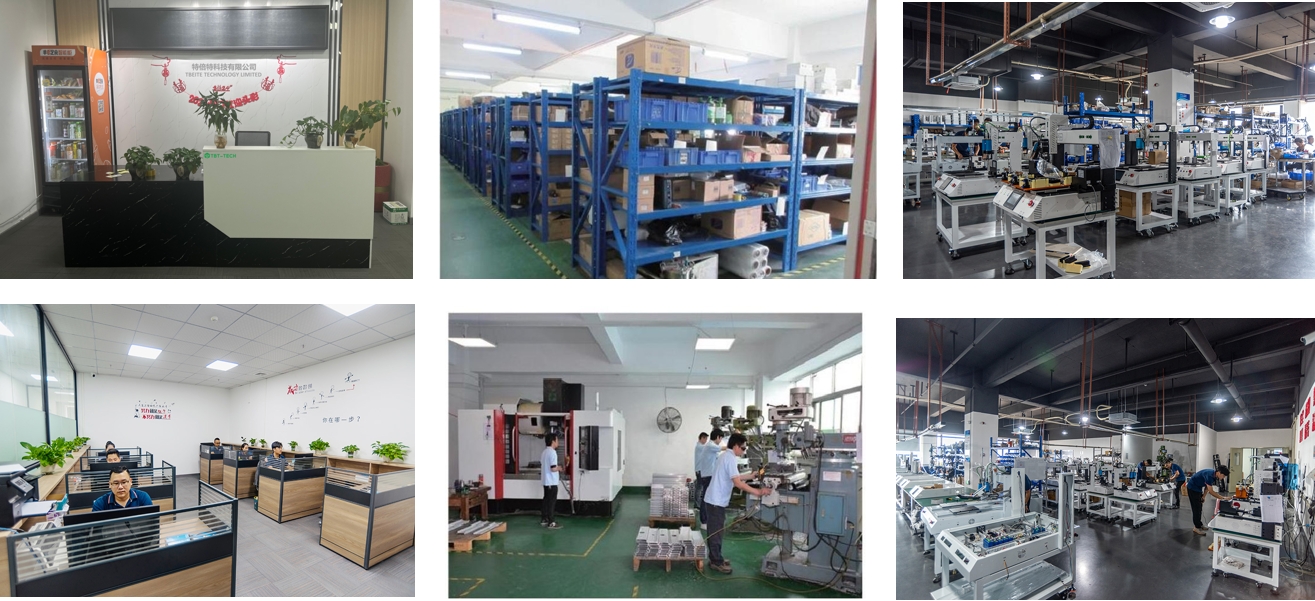

1. Over 10 years in the screwing machine industry ensures the screw fastening machine's stability and durability.
2. Factory - direct sales with guaranteed after - sales service.
3. Mass production, fast delivery, and more competitive prices than peers.
4. Customized services can quickly offer solutions according to customers' products and requirements.

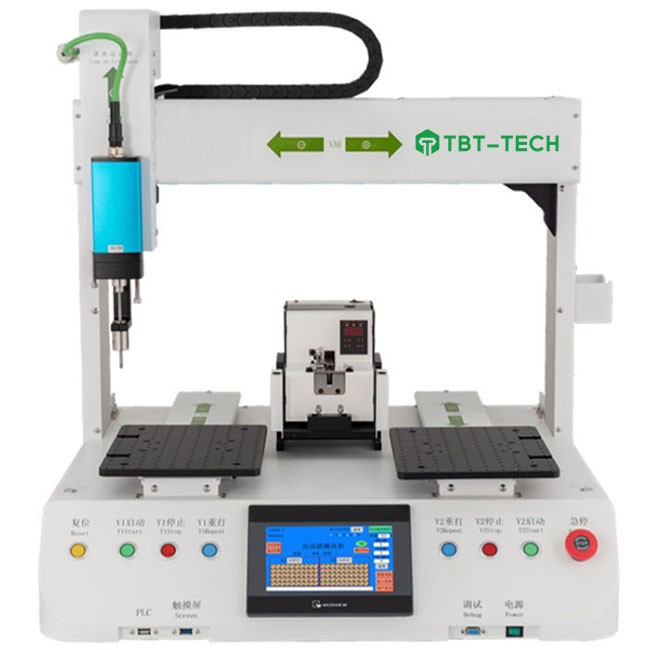

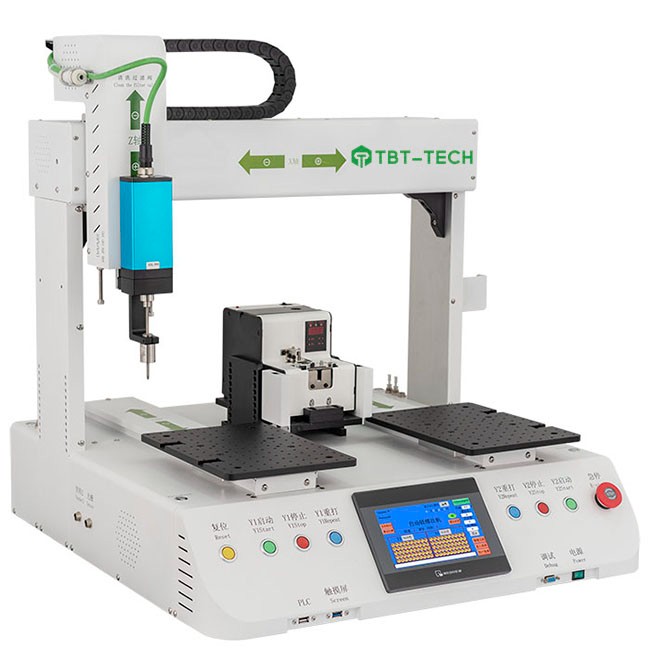

SPECIFICATION
Models
TBT5331-SX
TBT5441-SX
Size: LxWxH
730×680×720mm
730×780×720mm
Movement Range: X*Y*Z
500*300*100mm
500*400*100mm
Fastening Range: X*Y*Z
180*300*100mm
180*400*100 mm
Weight
70g
75 kg
Drive mode
Closed-loop stepper or servo
Closed-loop stepper or servo
Transmission mode
Screw rod or synchronous belt
Screw rod or synchronous belt
Control system
PLC / Motion control card
PLC / Motion control card
Screw feeding mode
Air Suction / Magnet Suction
Air Suction / Magnet Suction
Screwdriver
Servo Screwdriver
Servo Screwdriver
Positioning accuracy
±0.02
±0.02
Fastening time
1.5 - 1.8s / screw
1.5 - 1.8s / screw
Program stores
999 Groups, 100 Points / Program
999 Groups, 100 Points / Program
Display method
Touch Screen
Touch Screen
Supply voltage
Single-phase 220V / 110V
Single-phase 220V / 110V
Power
900W
900W
Air supply (Mpa)
0.5-0.7 Mpa
0.5-0.7 Mpa
Screwdriver Qty (Set)
1
1

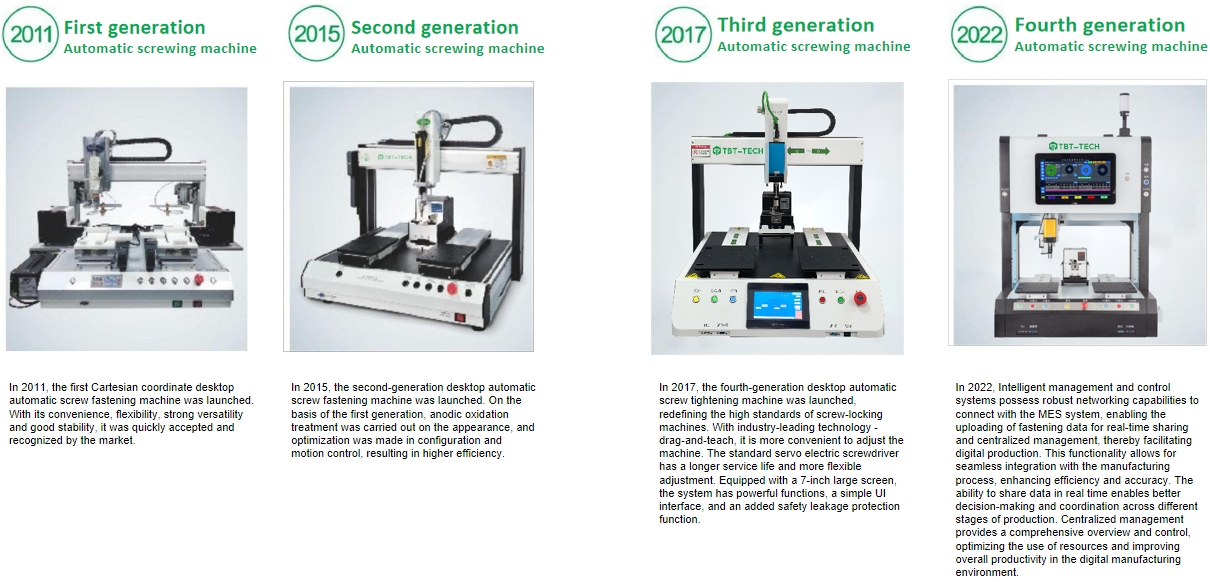

Development history of automatic screwing machines
On the road of development, we have been working hard all the time,
constantly improving our products and providing customers with high-quality products and good after-sales service.
Applicable various screw shapes
Automatic screw locking machines are widely used for Electronics, Home applications, LED bulbs, Auto parts, PCB assembly, Hardware, Computer board, toys, Furniture, etc...
Application Cases

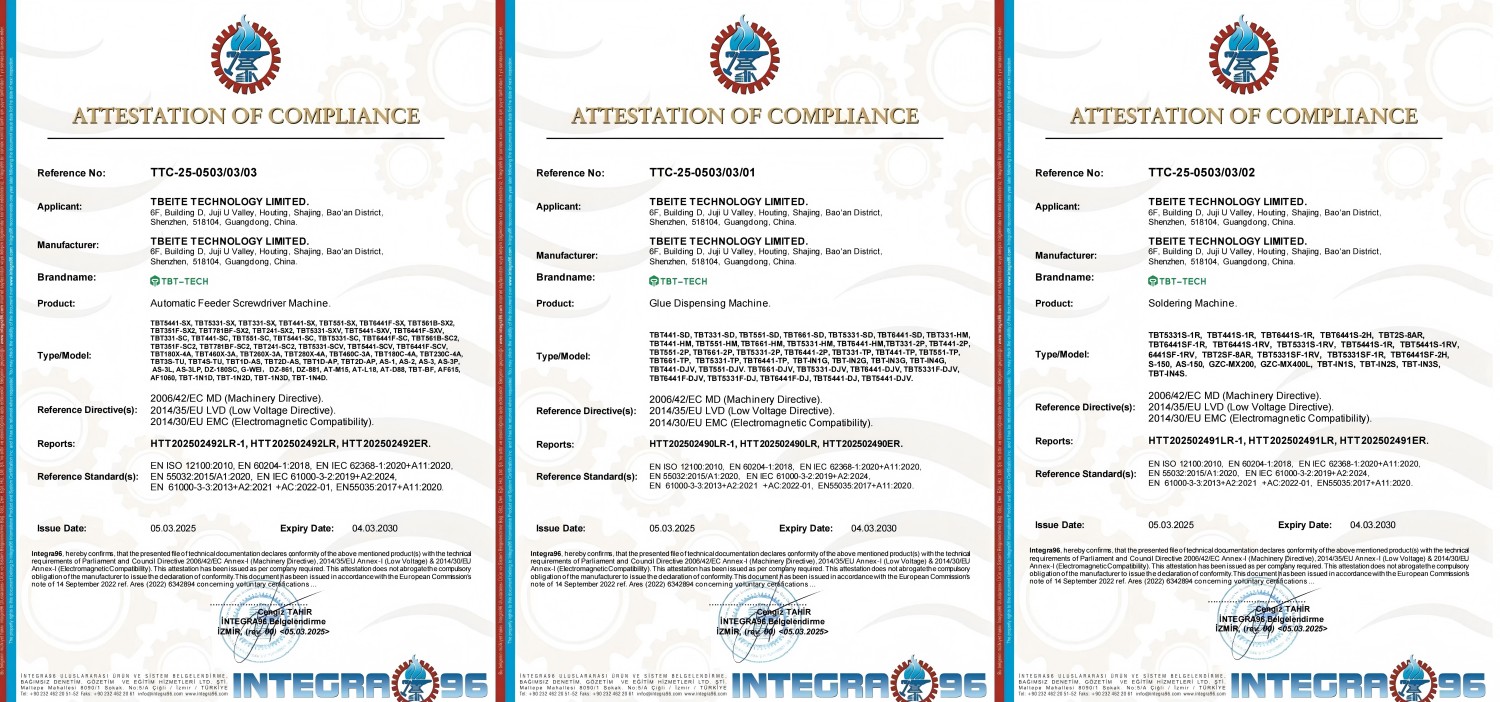

Honor Certificates
Our Screwdriver Machine, Soldering Machine and Glue Dispensing Machine have successfully obtained the NB-CE certification issued by an authoritative EU institution. This certification holds great value, and its review process is extremely rigorous, covering in-depth evaluations of multiple dimensions such as product safety standards, environmental protection requirements, and quality control systems. Obtaining this certification fully demonstrates that our products have met the stringent standards set by the European Union in all performance indicators, and they are qualified to be sold smoothly in the EU market and even globally. It powerfully showcases our outstanding capabilities in product research and development, production processes, and quality control.
Delivery, shipping and service
After - sales service is not the end, but the starting point of our eternal companionship. We are online 24 hours a day, on standby at all times, just like a guardian star, escorting you throughout your usage journey.
All the machines are with safety packing by plywooden case, solid packing ensures that the machine will not be damaged in transit.
