Description
Product Description

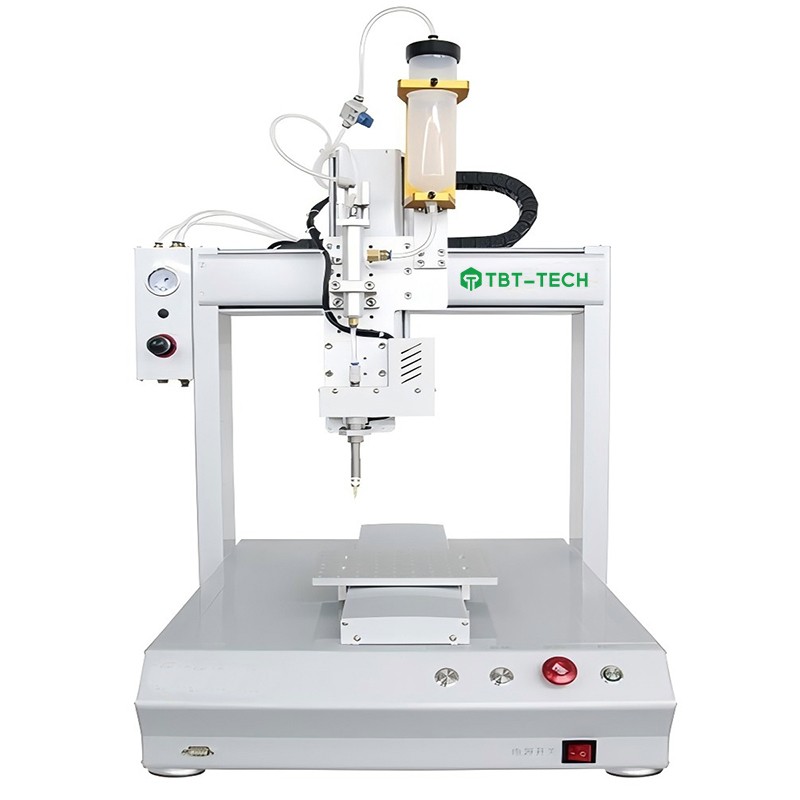

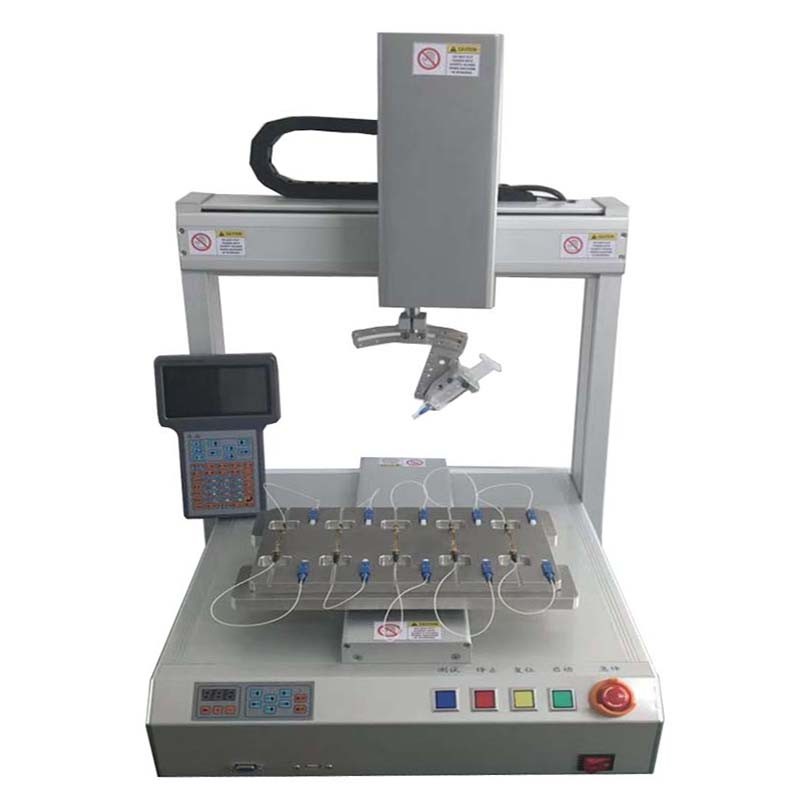

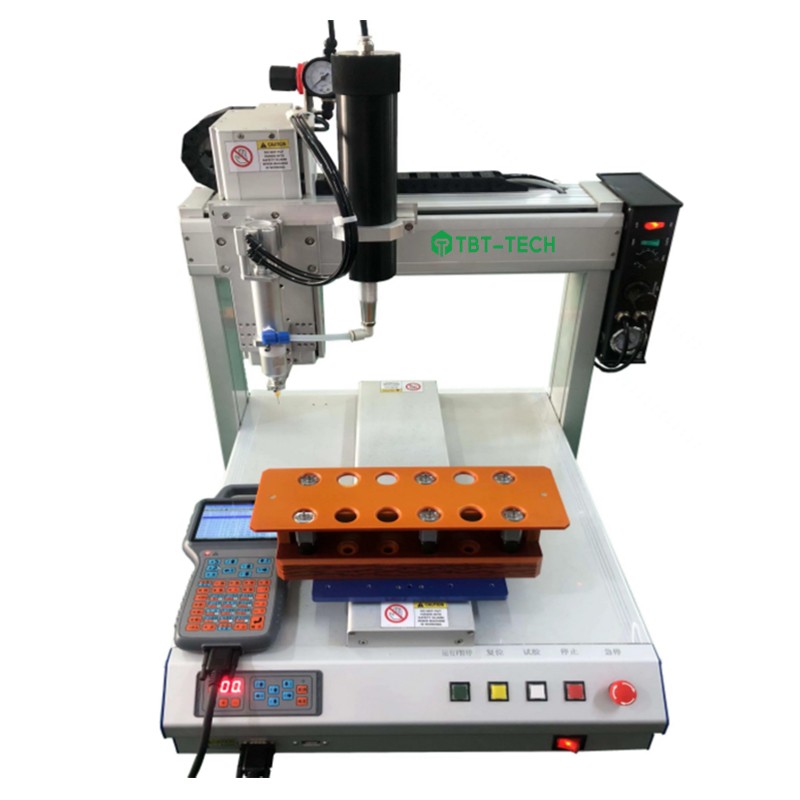

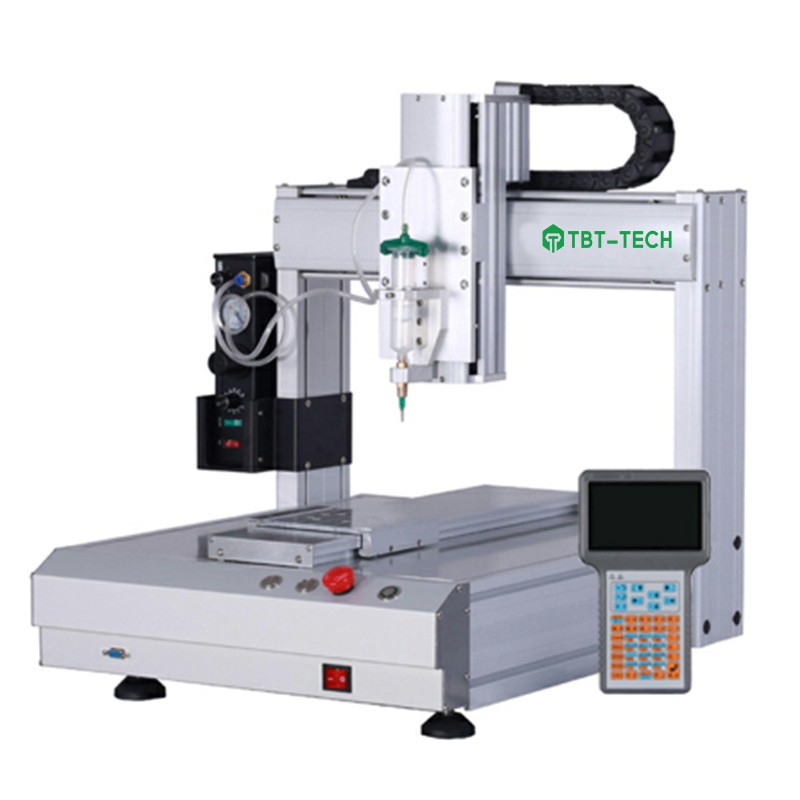

The automatic dispensing machine is a highly efficient and precision instrument designed for various industrial applications. It can accurately apply adhesives, sealants, and other fluids with consistent volume and speed.
Equipped with advanced technology, it offers stable and reliable performance. The machine is capable of handling different types of materials and viscosities, ensuring optimal results every time.
With its automated operation, it saves time and labor costs while improving production efficiency. It can be easily programmed to meet specific dispensing requirements, making it a versatile tool for manufacturers.
The automatic dispensing machine is built with quality materials and components, ensuring durability and long service life. It is user-friendly and easy to maintain, providing a convenient solution for industrial production.
Specification
Model
TBT331-SD
TBT441-SD
TBT551-SD
TBT661-SD
Maching Size
L624*W612*H648mm
L724*W713*H648mm
L824*W813*H648mm
L924*W913*H648mm
Working Range
X:300mm, Y:300mm, Z:100mm
X:400mm, Y:400mm, Z:100mm
X:500mm, Y:500mm, Z:100mm
X:600mm, Y:600mm, Z:100mm
Maximum Moving Speed
X,Y 600-800mm/s,Z 400mm/s
X,Y 600-800mm/s,Z 400mm/s
X,Y 600-800mm/s,Z 400mm/s
X,Y 600-800mm/s,Z 400mm/s
Repeated accuracy
士0.02mm
士0.02mm
士0.02mm
士0.02mm
Working Valtage
AC220V/110V 50-60Hz
AC220V/110V 50-60Hz
AC220V/110V 50-60Hz
AC220V/110V 50-60Hz
Working Air Pressure
0.4 to 0.8 Mpa
0.4 to 0.8 Mpa
0.4 to 0.8 Mpa
0.4 to 0.8 Mpa
Drive Method
Motor + synchronous belt + linear guide
Motor + synchronous belt + linear guide
Motor + synchronous belt + linear guide
Motor + synchronous belt + linear guide
Files Storage
Around 1000 files
Around 1000 files
Around 1000 files
Around 1000 files
Programming Mode
Teach Pendant
Teach Pendant
Teach Pendant
Teach Pendant
Dispensing Path
Dot/Line/Arc/Circle
Dot/Line/Arc/Circle
Dot/Line/Arc/Circle
Dot/Line/Arc/Circle
Working environment
-5~40℃,humidity 20%~95%
-5~40℃,humidity 20%~95%
-5~40℃,humidity 20%~95%
-5~40℃,humidity 20%~95%
Applied Fluid and Industry
Main Spare parts& Programming Path
Features
1. Suitable for wide range of fluid dispensing applications
2. Faster cycle and batch times
3. Easy integration into any manufacturing operation
4. Reduced production, material, and ownership costs
5. Suitable for wide range of fluid dispensing applications

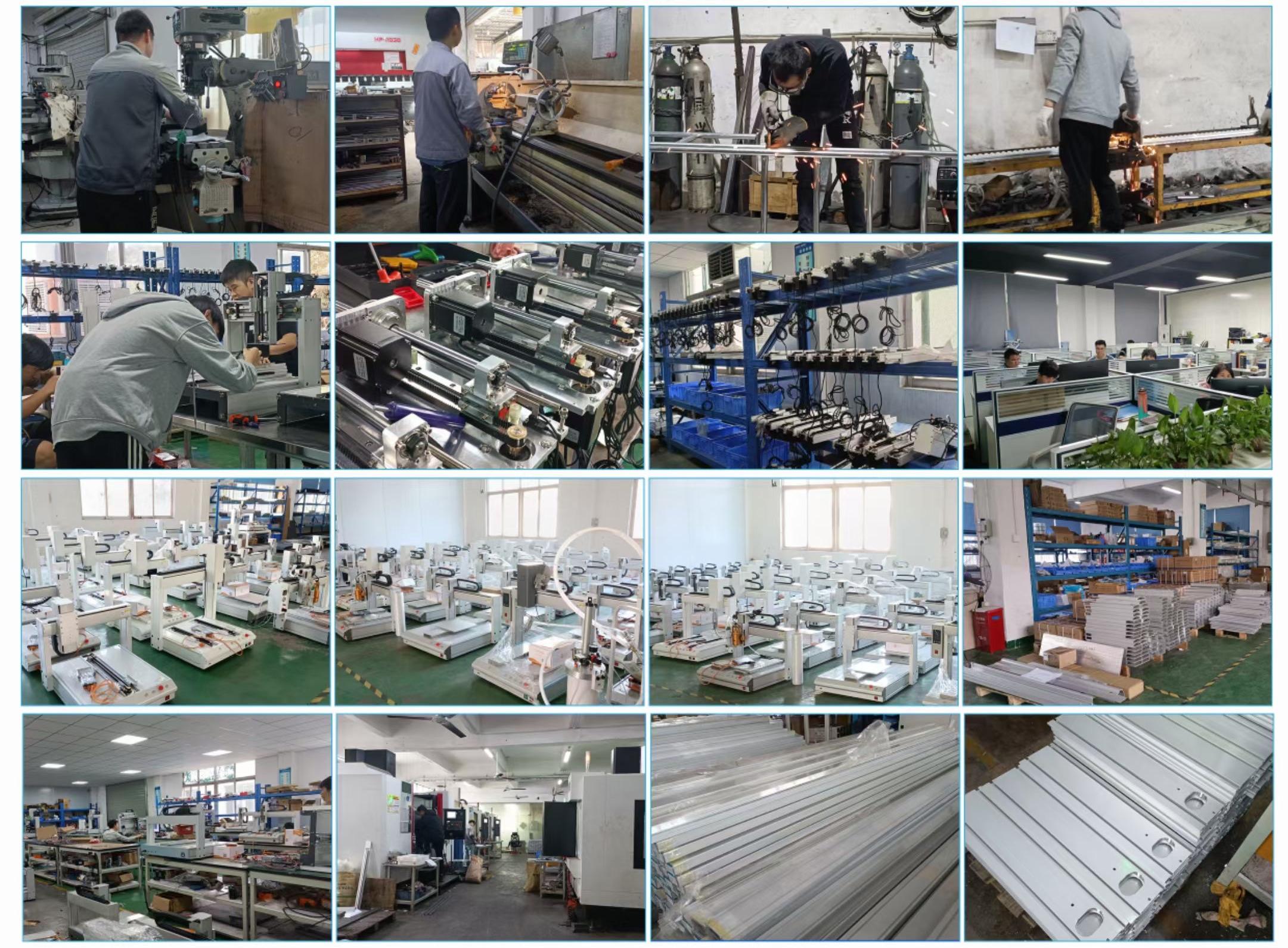

Company Strength
From R & D and design to batch processing of parts and then to batch assembly of equipment, we provide one-stop equipment production management. In terms of batch equipment production, we have more advantageous prices and a faster delivery cycle than our peers.
Delivery, shipping and service
After - sales service is not the end, but the starting point of our eternal companionship. We are online 24 hours a day, on standby at all times, just like a guardian star, escorting you throughout your usage journey.
All the machines are with safety packing by plywooden case, solid packing ensures that the machine will not be damaged in transit.
