Description
PRODUCT DESCRIPTION

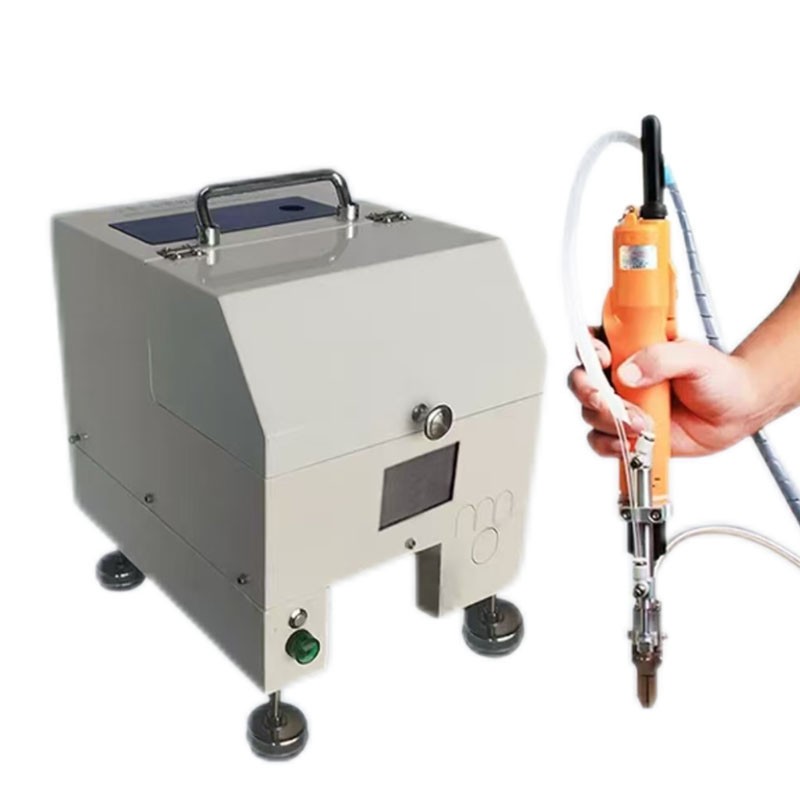

The handheld screwing machine is a highly efficient and low-cost automated equipment. This machine enables automatic screw feeding, sorting, and fastening with one-hand operation. By employing this handheld screw fastening machine, the workingefficiency of one worker is equivalent to that of three workers, significantly boosting the factory's output and considerably reducing the labor cost
Why Choose Us?
1. Over 10 years in the screwing machine industry ensures the screw fastening machine's stability and durability.
2. Factory - direct sales with guaranteed after - sales service.
3. Mass production, fast delivery, and more competitive prices than peers.
4. Customized services can quickly offer solutions according to customers' products and requiremen.
Specification
|
Model |
AS-1 |
|
Dimensions |
L370*W220*H280MM |
|
Wight |
15KG |
|
Voltage |
AC110V/220V, 50/60HZ |
|
Power |
0.12KW |
|
Air pressure |
0.4 to 0.6MPa |
|
Torque Range |
Depends on product |
|
Screwdriver |
TBT |
|
Feeding mode |
Air shooting type |
|
Fastening mode |
Push and pull type |
|
Working mode |
Semi-automatic |
|
Efficiency |
40 to 60 screws per minute |
|
Main function |
Hand screwdrivers with auto screw feeding |

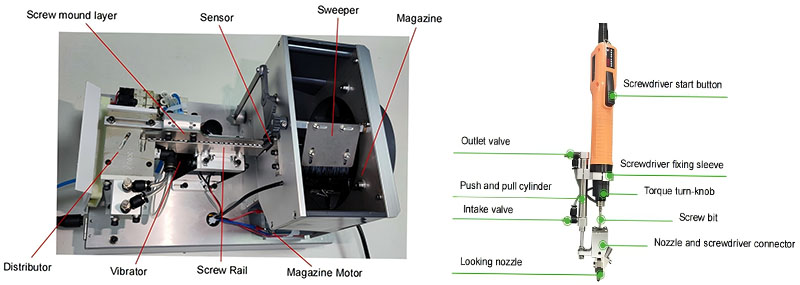

Machine Details
PRODUCT FEATURES
1. Automatic screw feeding, sorting and fastening with one-hand operation.
2. Torsion precision and convenient adjustment, ensure the quality of screw fastening
3. Low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4. Warning function when lack of screws.(Acousto-optic alarm)
5. High efficiency. No need to pick up screws, move screws and put screws. Just need to aimed at the screw hole to fasten the screws.
6. Screw feeding very fast, feeding speed 0.6-0.6S per screw, the efficiency depends on how fast your operator can work.
Applicable various screw shapes
Application Cases
The handheld screw fastening machine is mainly applied to Mobile phones, hard disks, keyboards, toys, LCD/LED modules, communication equipment, electrical appliances, auto parts, etc.
After-sales service is not merely the end; rather, it is the starting point of our everlasting companionship. We are available online 24 hours a day, standing by at all times, much like a guardian star, escorting you throughout your entire usage journey.
All the machines are provided with safe packing in plywood cases. The solid packing ensures that the machines will not be damaged during transit.
