Description
PRODUCT DESCRIPTION
The handheld screwing machine is a highly efficient and low-cost automated equipment. This machine enables automatic screw feeding, sorting, and fastening with one-hand operation. By employing this handheld screw fastening machine, the workingefficiency of one worker is equivalent to that of three workers, significantly boosting the factory's output and considerably reducing the labor cost
Specification
|
Model |
G-WEI |
|
Dimensions |
L239*W152*H167MM |
|
Wight |
5KG |
|
Voltage |
AC110V/220V, 50/60HZ |
|
Power |
0.08KW |
|
Torque Range |
1-10/2-12/3-16kgf.cm |
|
Screwdriver |
KILEWS/G-WEI |
|
Feeding mode |
Gravity type |
|
Fastening mode |
Press down |
|
Working mode |
Semi-automatic |
|
Efficiency |
40 to 60 screws per minute |
|
Main function |
Hand screwdrivers with auto screw feeding |

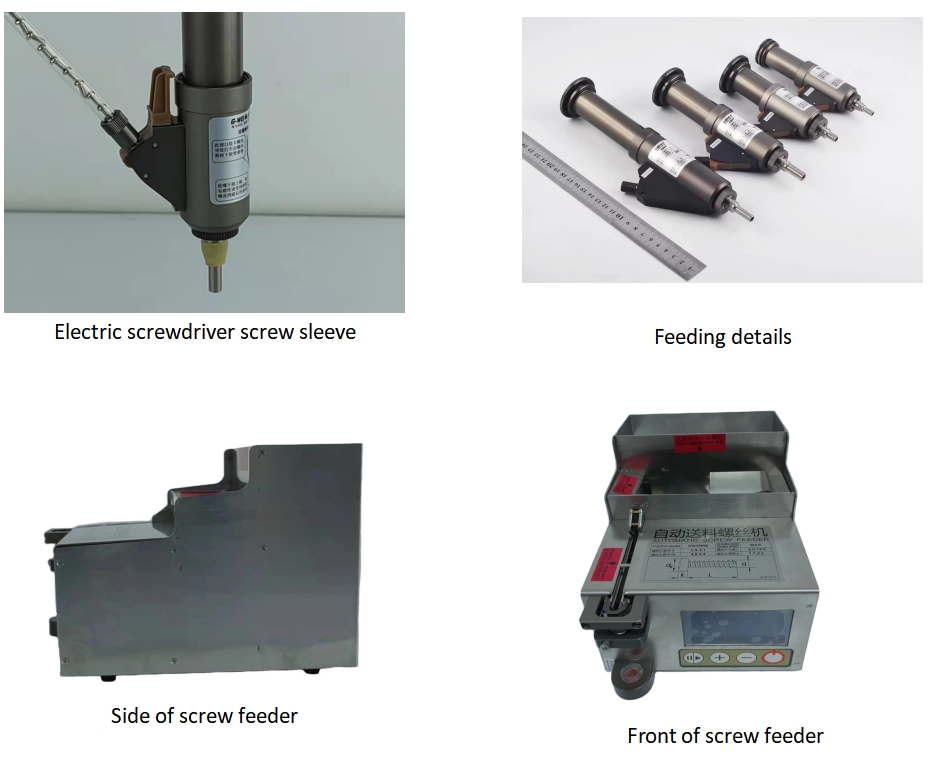

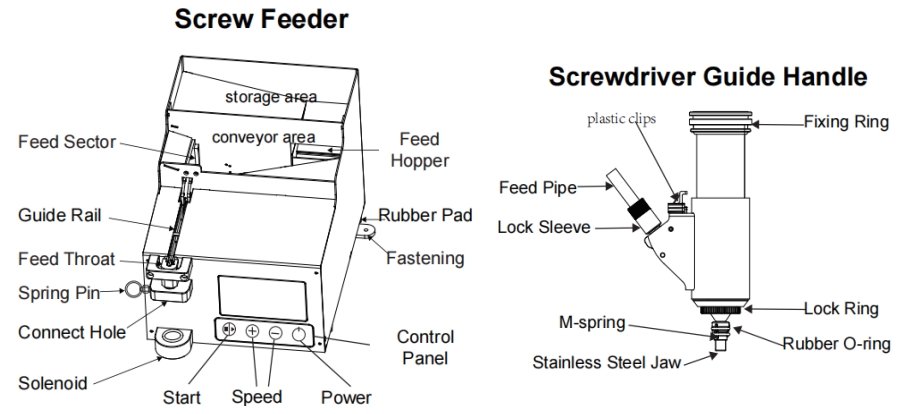

Machine Details
PRODUCT FEATURES
1. Portable Auto feeder screwdriver machine with small volume and can be carried conveniently.
2. Automatic feeding with vibration and gravity type sensor,do not need air pressure feeding ,more simple and more convenient.
3. LED display can display the number of feeding screws and can adjust feeding speed.
4. Sensor controls screws feeding one by one to avoid feeding repetition.
5. Automatic screw feeding, sorting and fixing for various shapes screws.One-hand operation.
6. Torsion precision and convenient adjustment, ensure the quality of screw fastening.
7. High efficiency,Do not need to pick up screw, move screw and put screw,just need to align the hole to fasten the screw
8. It Can fasten screws very fast, around fastening 60 screws per minute.
Applicable various screw shapes
Application Cases
The handheld screw fastening machine is mainly applied to Mobile phones, hard disks, keyboards, toys, LCD/LED modules, communication equipment, electrical appliances, auto parts, etc.
