Description

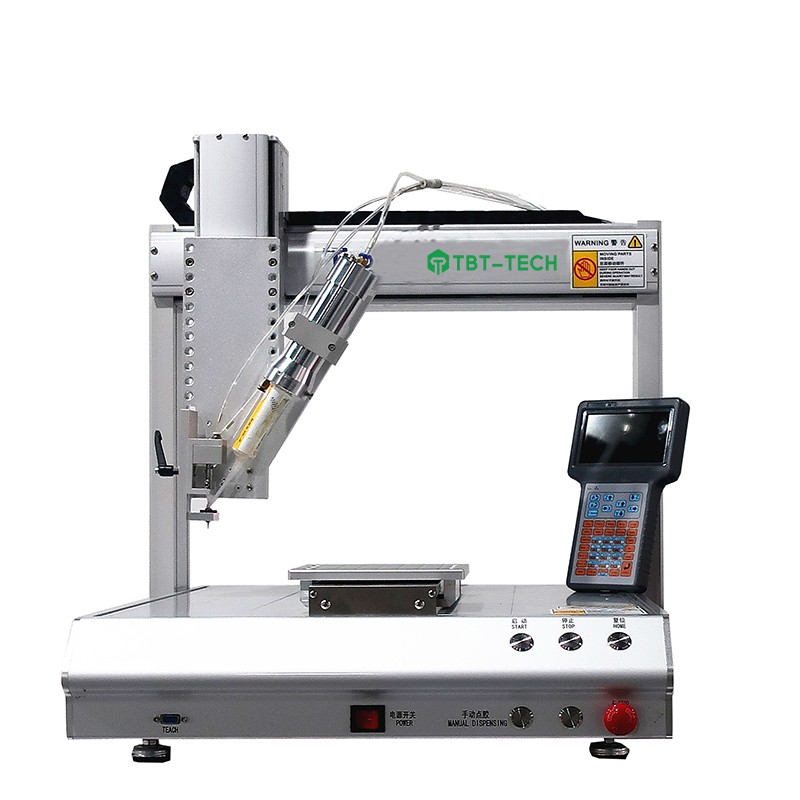

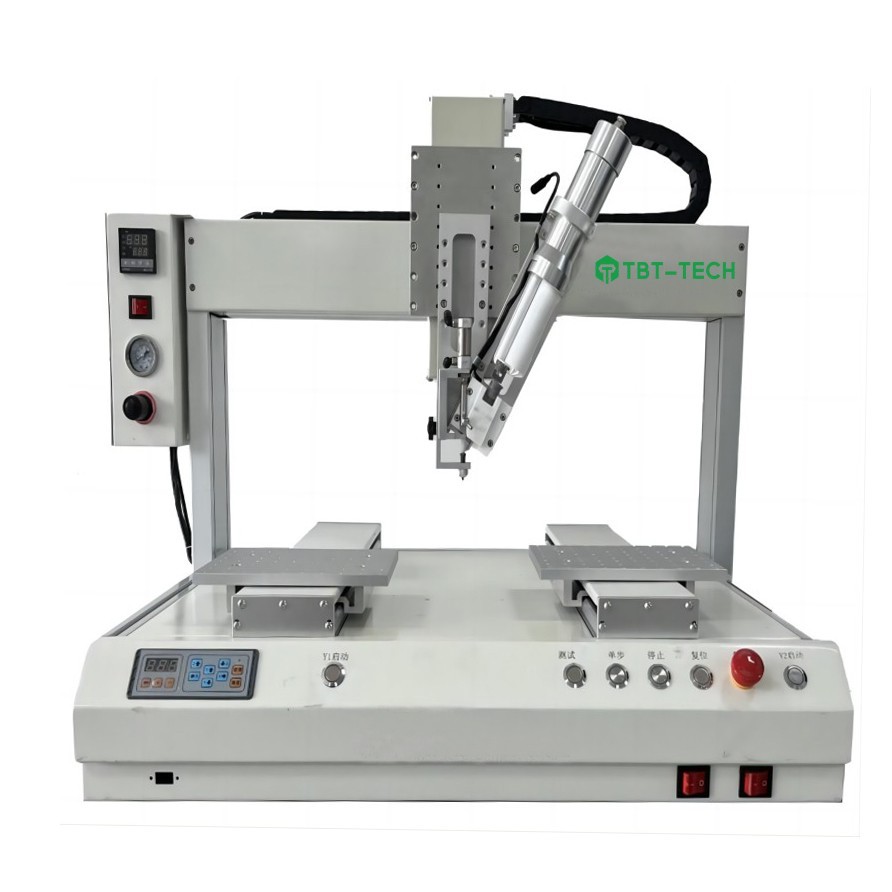

Product Description
1.Comprehensive dispensing process solutions, such as early closing glue, hysteresis open glue, diagonal pull up, moving speed, closed graphics setting function, array deployment support, graphical browsing, rotation, three-dimensional ellipse, common graphics library Insert, and group edit level features.
2. Single-machine operation, simple installation, program setup, strong PC compatibility, and the ability to input CAD file settings with Logo shop software.
3. Semiconductor encapsulation, PCB part fixation and protection, LCD glass machine encapsulation and adhesion, mobile phone board, speaker assembly line, battery box, auto parts gelatinization, hardware component seal, quantitative liquid filling, chip binding, etc.
Specification
Model
TBT5331-2P
TBT6441-2P
Maching Size
L824*W613*H661mm
L924*W713*H661mm
Working Range
X:500mm, Y:300mm*2, Z:100mm
X:600mm, Y:400mm*2, Z:100mm
Maximum Moving Speed
X,Y 600-800mm/s,Z 400mm/s
X,Y 600-800mm/s,Z 400mm/s
Repeated accuracy
士0.02mm
士0.02mm
Working Valtage
AC220V/110V 50-60Hz
AC220V/110V 50-60Hz
Working Air Pressure
0.4 to 0.8 Mpa
0.4 to 0.8 Mpa
Drive Method
Motor + synchronous belt + linear guide
Motor + synchronous belt + linear guide
Files Storage
Around 1000 files
Around 1000 files
Programming Mode
Teach Pendant
Teach Pendant
Dispensing Path
Dot/Line/Arc/Circle
Dot/Line/Arc/Circle
Working environment
-5~40℃,humidity 20%~95%
-5~40℃,humidity 20%~95%
Applied Fluid and Industry

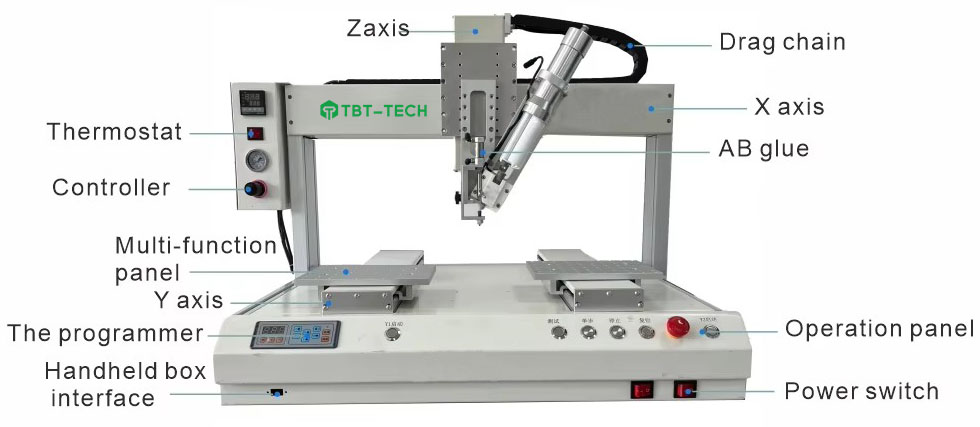

Main Spare parts& Programming Path
Product Features
1. The glue pouring robot allows for fine control over adhesive placement, such as perfect beads, repeat timed dots, or component potting. Programming is straightforward with a teaching pendant. Even intricate patterns can be generated fast.
2. Accurate fluid placement and volume assure no waste, mess, or errors.
3. High speeds are obtained, decreasing the time spent hand-applying adhesives.
4. The double Y axis can provide more efficiency and convenience in operation.
5. Replace human labor and reduce labor costs.
6. The operation is simple and convenient, with fast speed and precise control.
7. The high-precision motor ensures exact dispensing.
8. High performance. Linear structure platform with pleasant.
Application Field
Delivery, shipping and service
After-sales service is only the beginning of our eternal partnership. We are available 24 hours a day, seven days a week, and act as a guardian star, guiding you through your usage experience.

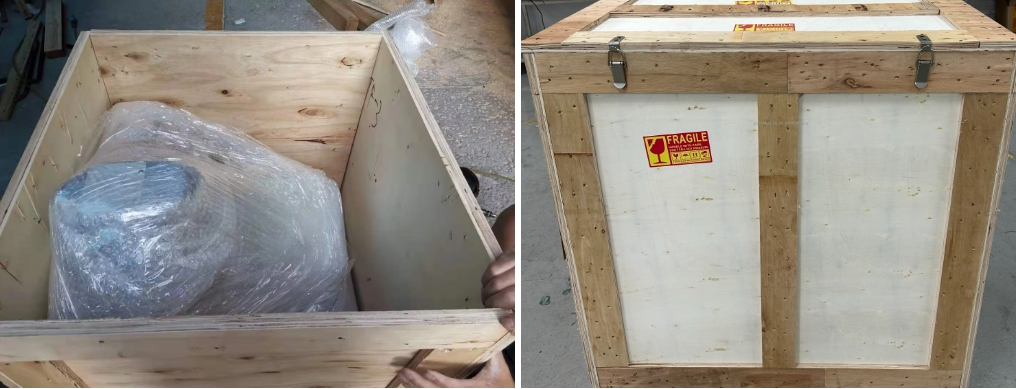

All machines are safely packed in plywooden cases; robust packing ensures that the machine is not damaged during transit.
