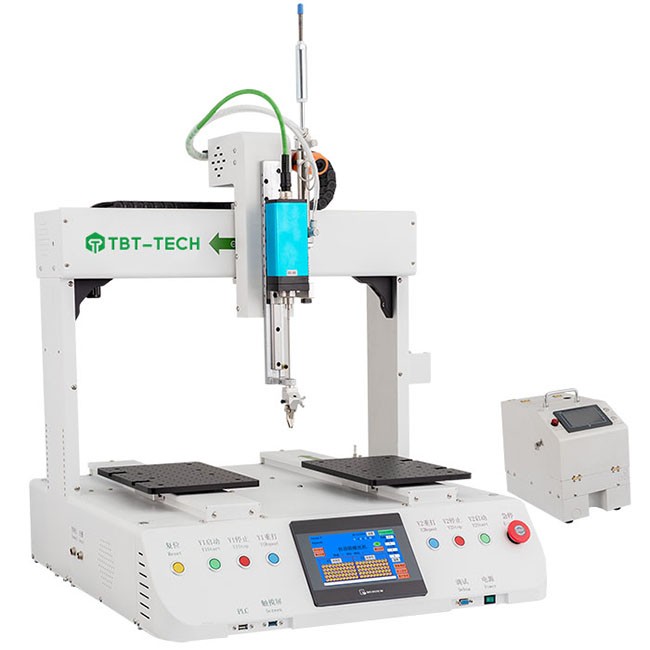

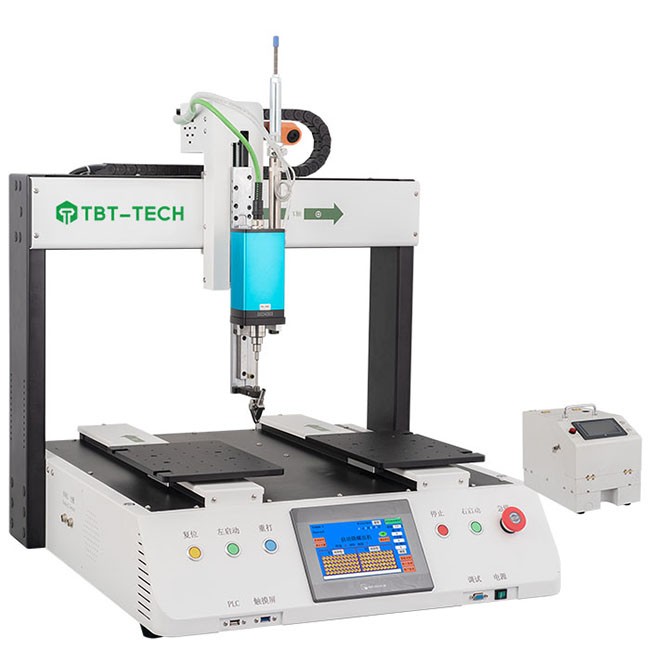

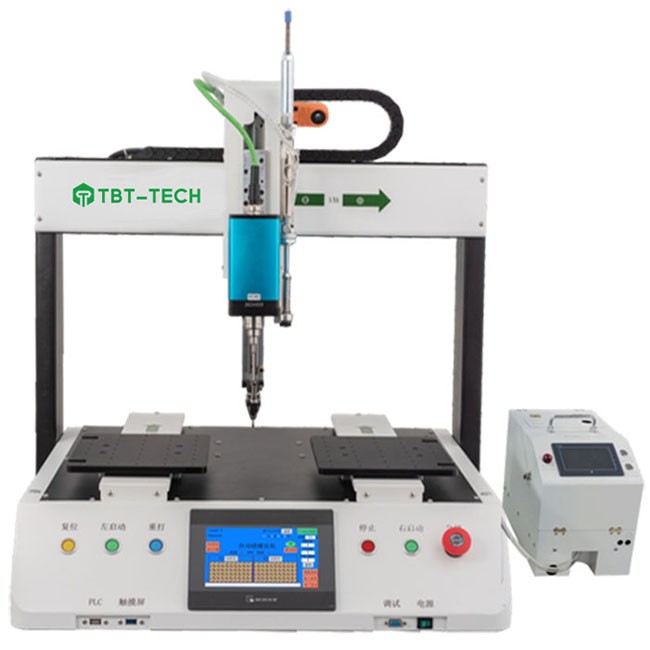

Description
Equipment features
1. Automatic screw feeding mode eliminates the need to take products back and forth, featuring high speed and efficiency.
2. It can fasten screws on surfaces with different heights.
3. The intelligent servo electric screwdriver supports fastening a product with 4 different torques.
4. It can combine two screw locking processes. (After finishing one process, it stops. Then install accessories and lock screws for another process.)
5. The intelligent servo electric screwdriver has fast rotation speed, high precision, low noise, long service life and requires no maintenance. The torque and rotation speed can be set arbitrarily on the touch screen.
6. The sheet metal frame has strong rigidity. The Z-axis structure has a large up and down stroke, supports products with different heights and has strong compatibility.
7. The closed-loop stepping motor has high precision, can perform position compensation and does not lose steps.
8. Equipped with a self-developed motion control card, it has foolproof programming. Optional drag-type adjustment is available, making programming easy.
9. Matched with the HMI touch screen, it dynamically displays the locking status, electric screwdriver rotation speed and electric screwdriver torque, enabling real-time monitoring.
10. The single-head and double rails air shooting type has a large fastening range, it can operate alternately on the left and right, doubling efficiency and being twice as efficient as air suction type screwing robot.
SPECIFICATION
|
Models |
TBT5331-SC |
TBT5441-SC |
|
Size: LxWxH |
730×680×720mm |
730×780×720mm |
|
Movement Range: X*Y*Z |
500*300*100mm |
500*400*100mm |
|
Fastening Range: X*Y*Z |
250*300*100mm |
250*400*100 mm |
|
Weight |
80kg |
85 kg |
|
Drive mode |
Closed-loop stepper or servo |
Closed-loop stepper or servo |
|
Transmission mode |
Screw rod or synchronous belt |
Screw rod or synchronous belt |
|
Control system |
PLC / Motion control card |
PLC / Motion control card |
|
Screw feeding mode |
Air Shooting |
Air Shooting |
|
Screwdriver |
Servo Screwdriver |
Servo Screwdriver |
|
Positioning accuracy |
±0.02 |
±0.02 |
|
Fastening time |
0.8 - 1s / screw |
0.8 - 1s / screw |
|
Program stores |
999 Groups, 100 Points / Program |
999 Groups, 100 Points / Program |
|
Display method |
Touch Screen |
Touch Screen |
|
Supply voltage |
Single-phase 220V / 110V |
Single-phase 220V / 110V |
|
Power |
1000W |
1000W |
|
Air supply (Mpa) |
0.5-0.7 Mpa |
0.5-0.7 Mpa |
|
Screwdriver Qty (Set) |
1 |
1 |

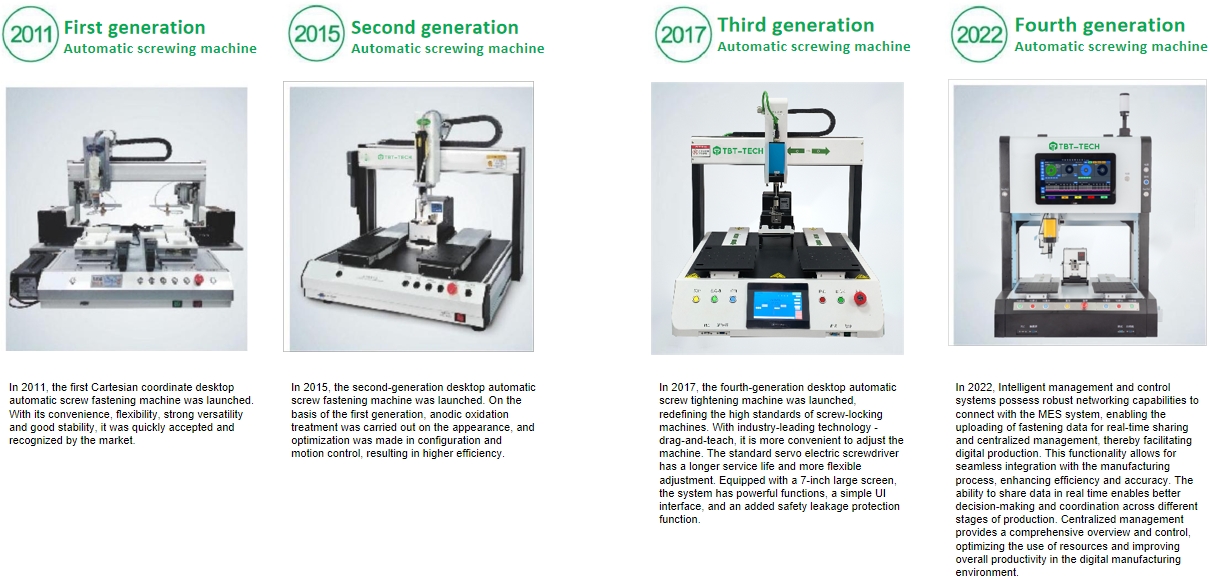

Development history of automatic screwing machines
On the road of development, we have been working hard all the time,
constantly improving our products and providing customers with high-quality products and good after-sales service.

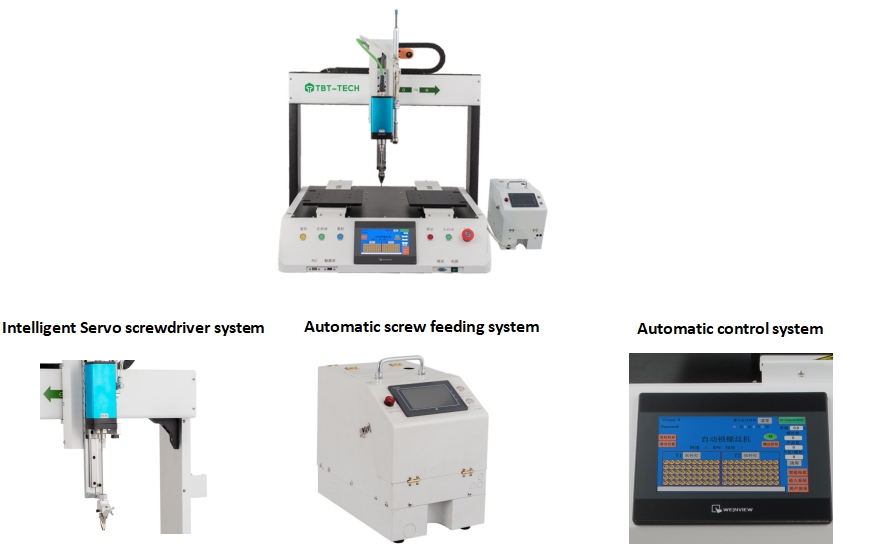

Equipment details display
Applicable various screw shapes
Application Cases
Automatic screw locking machines are widely used for Electronics, Home applications, LED bulbs, Auto parts, PCB assembly, Hardware, Computer board, toys, Furniture, etc...

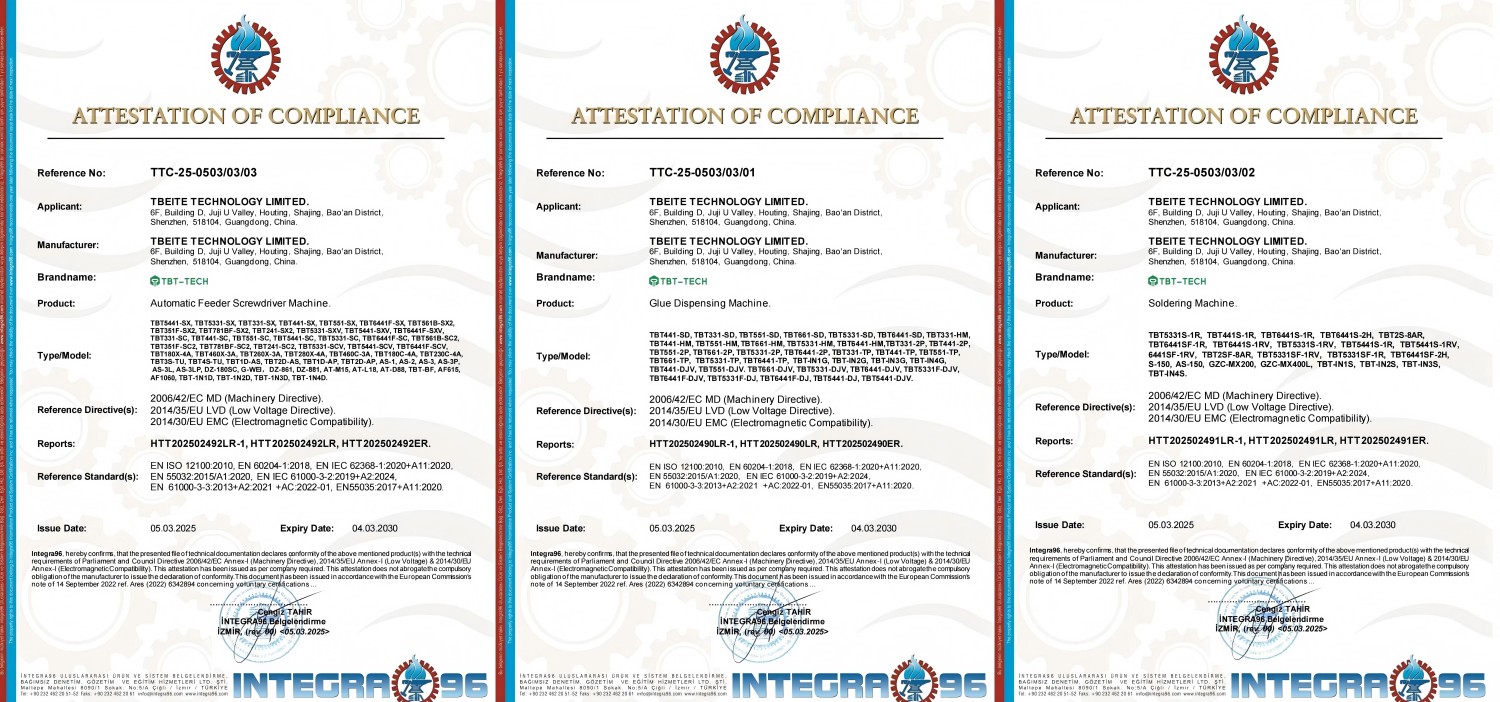

Honor Certificates

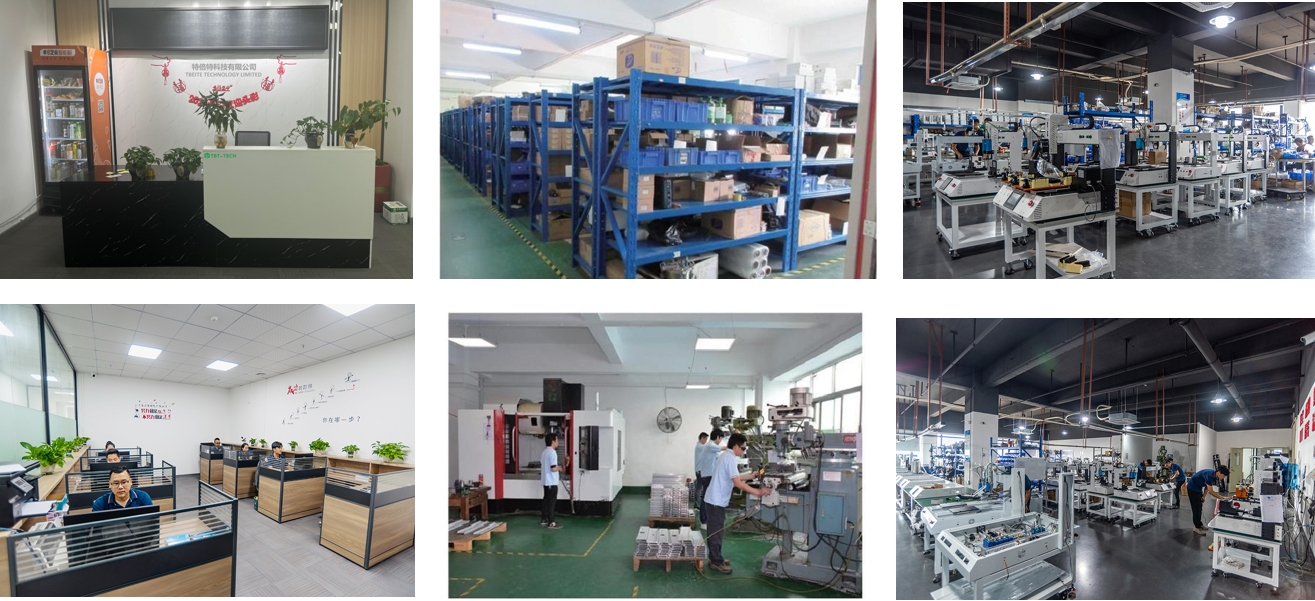

Factory strength
We are committed to providing customers with comprehensive solutions for automatic screwdrivers, automatic screw feeders, fluid dispensers, automatic riveters and other related automatic equipment. Mass production of our machines offers advantages in price and fast delivery. Before shipping, the machines are fully tested and carefully packaged to ensure the quality and stability of the delivered products.
