Description
PRODUCT DESCRIPTION

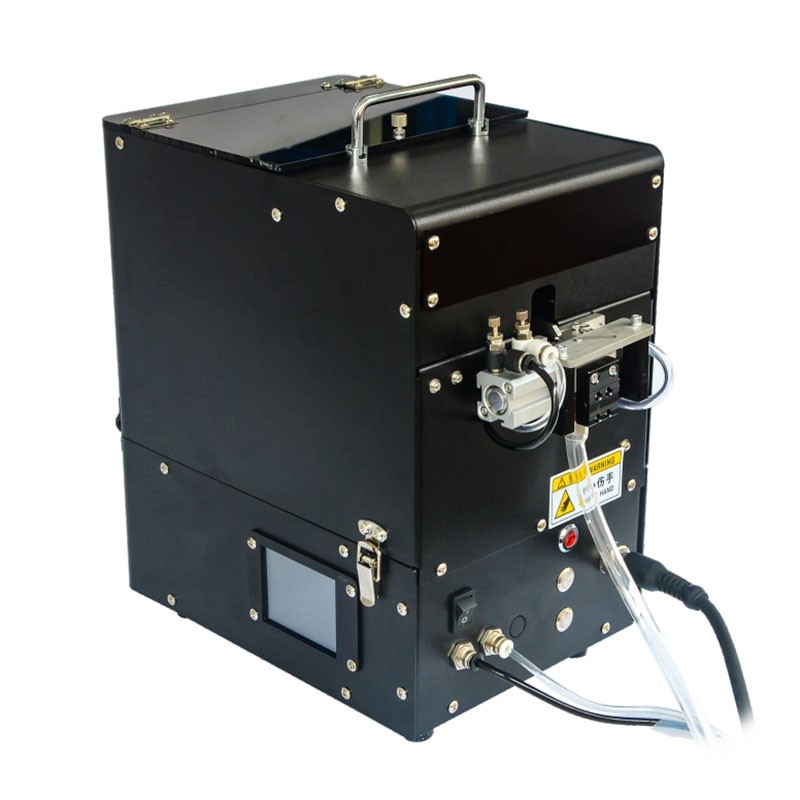

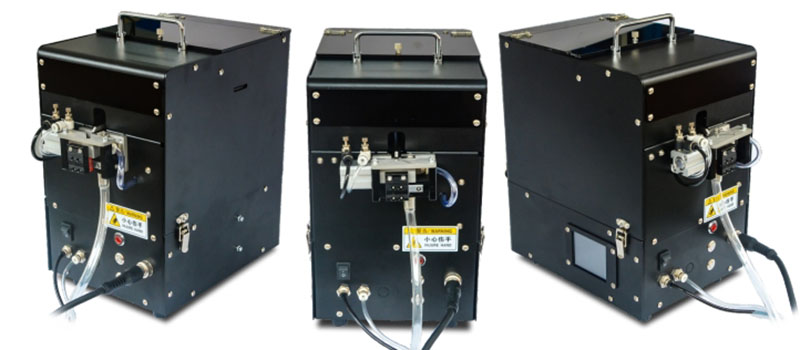

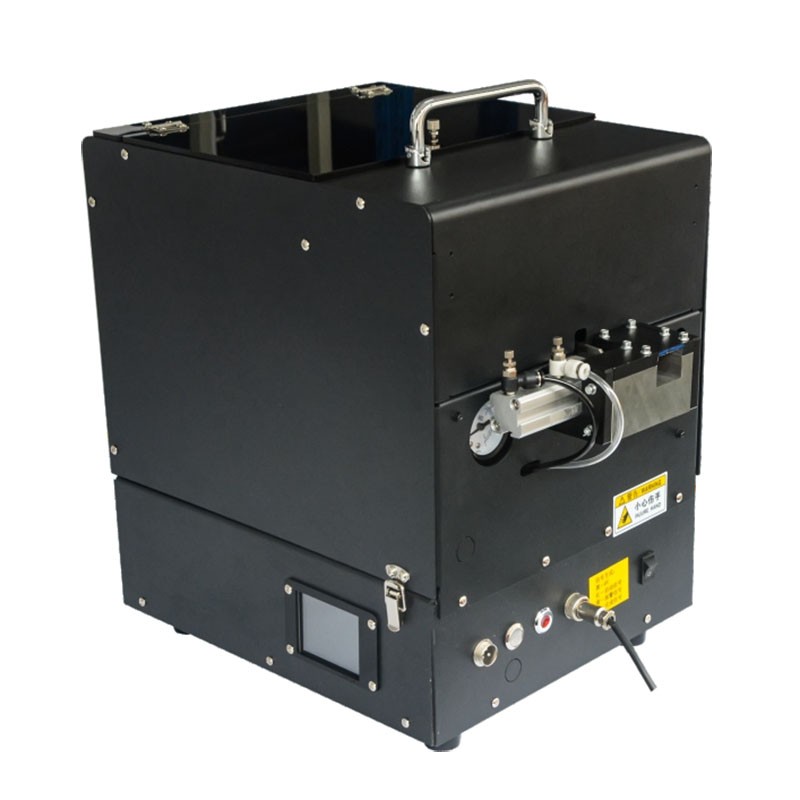

This automatic screw feeding system is capable of integrating with a wide range of automated equipment to attain efficient and stable screw conveyance. It provides a continuous and stable screw supply through advanced control systems. Durable and user-friendly, it significantly enhances productivity in manufacturing.
SPECIFICATION
|
Model |
DZ-861 |
DZ-881 |
|
Dimensions |
L284*W184*H334MM |
L370*W270*H370MM |
|
Wight |
9.8KG |
15KG |
|
Voltage |
AC100V~240V DC24V 1A AC adapter |
AC100V~240V DC24V 1A AC adapter |
|
Air pressure |
0.4 to 0.6MPa |
0.4 to 0.6MPa |
|
Feeding mode |
Air shooting type |
Air shooting type |
|
Output screws |
50~100PCS/minute |
50~100PCS/minute |
|
Applicable screw diameter |
M1.4~M5.0 |
M3~M8 |
|
Applicable screw length |
1.0~20mm |
3.5~50mm |
PRODUCT FEATURES
1. Utilizing imported brushless motors and an anti-interference intelligent control system, with multiple signal transmission interfaces.
2. The appearance is high-end, stylish, and of top grade, suitable for automatic screw locking machines on platforms and various types of manipulators.
3. The visual digital display functional operation panel features shortcut setting buttons for each parameter, enabling direct parameter configuration.
4. It can be used in combination with automation (manual or automatic), and can handle special screws, 1:1 short screws, and screws with washers. The product is compact and can be placed on the workbench, reducing the labor intensity of employees, improving work efficiency, and saving costs.
5. Main application fields: 3C products, household appliances, automotive parts, and toys.
Applicable various screw shapes
This screw feeding system has excellent versatility and can be applied to various types of screws, such as cross - head screws, Torx screws, inner - hexagon screws and slotted screws, etc...
