Description
Product Description

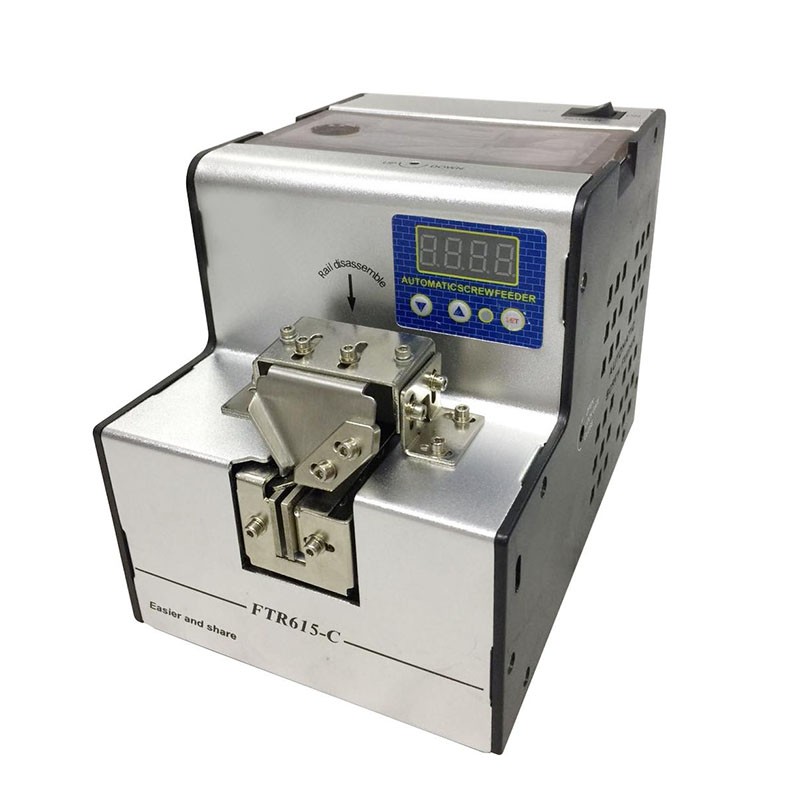

The screw feeding machine is a precise and efficient equipment. It offers continuous and stable screw supply with advanced control systems. Durable and user-friendly, it boosts productivity in manufacturing.
Specification
Model
FTR-615C
FTR-615
Dimensions
L149*W84*H118mm
L182*W126*H150mm
Weight
Around 2.6kg
Around 2.1 kg
Power supply
AC100~220V, output DC15V
AC100~220V, output DC15V
Discharge speed
60-120PCS/ min
60-120PCS/ min
Applicable screw diameter
M1.0~M5.0
M1.0~M5.0
Applicable screw length
1.0~20mm
1.0~20mm
Effective capacity of magazine
Around 200ml
Around 200ml
Screw counter
YES
NO
Applicable screw
Product Features
- The track adjustment is convenient. The screw track can be pulled out for free adjustment.
- It is equipped with a counting function. The counting range is adjustable (0-9999), and it will stop and alarm when the quantity is reached.
- The discharging speed can be changed by adjusting the vibration. The screws at the material fetching position will not affect the working efficiency due to front and back jitters.
- It is universally adjustable for various screw specifications from M1.0 to M5.0. Special screws such as 1:1 short screws and screws with washers can be used.
- The feeding and loading drives are independently controlled. The ideal delay shutdown time can be freely set. When there are abnormalities such as screw jamming or short circuit, the screw feeder will activate the fault alarm function.
Why Us
. More than 10 years of experience in the field of automated tightening solutions.
. Factory - direct sales with guaranteed after - sales service.
. Mass production, fast delivery, and more competitive prices than peers.
. Customized services can quickly offer solutions according to customers' products and requirements.
