Description
PRODUCT DESCRIPTION

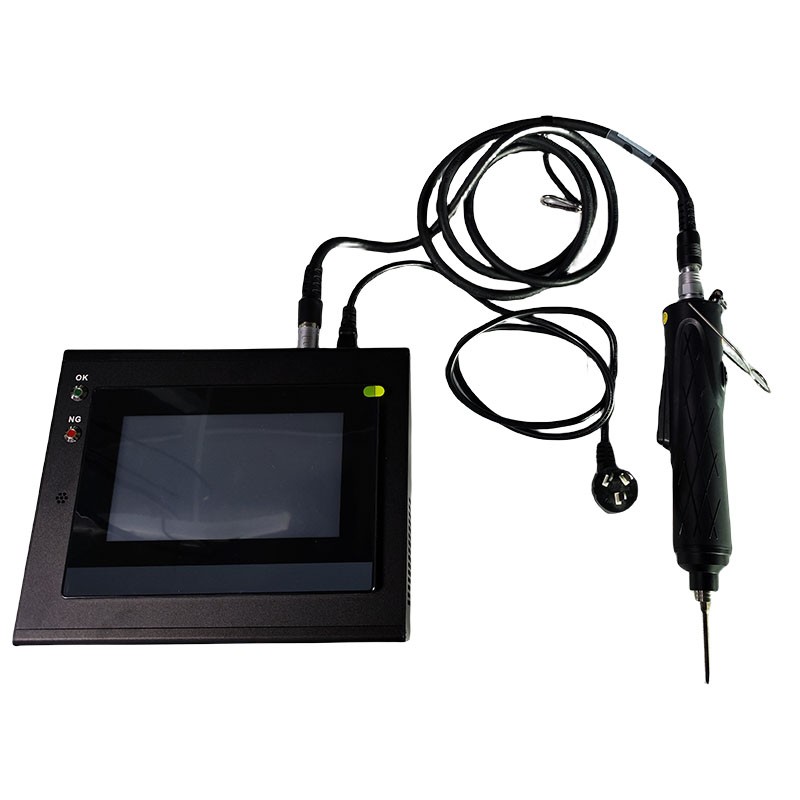

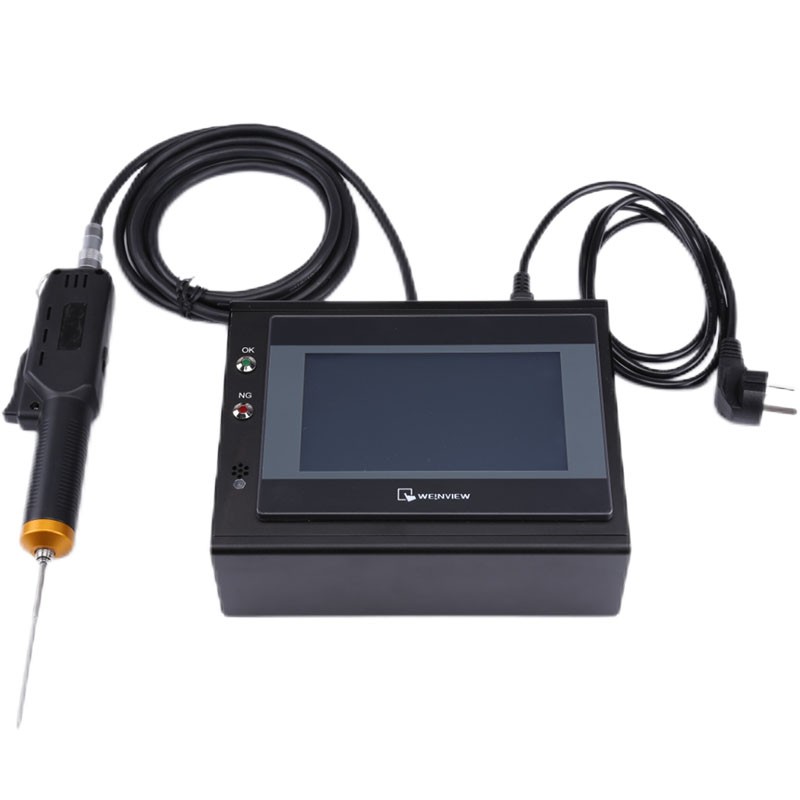

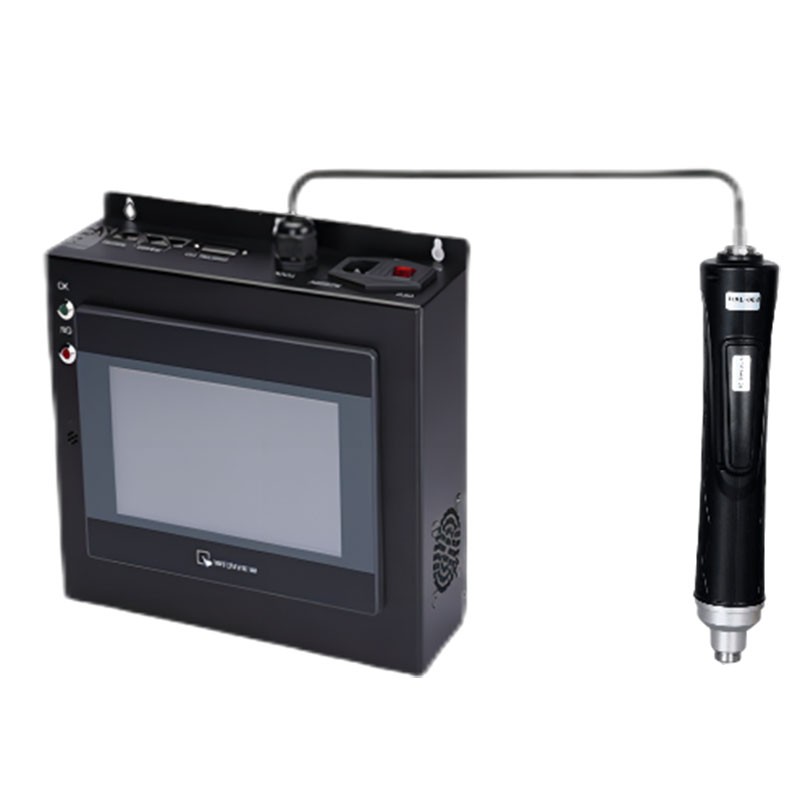

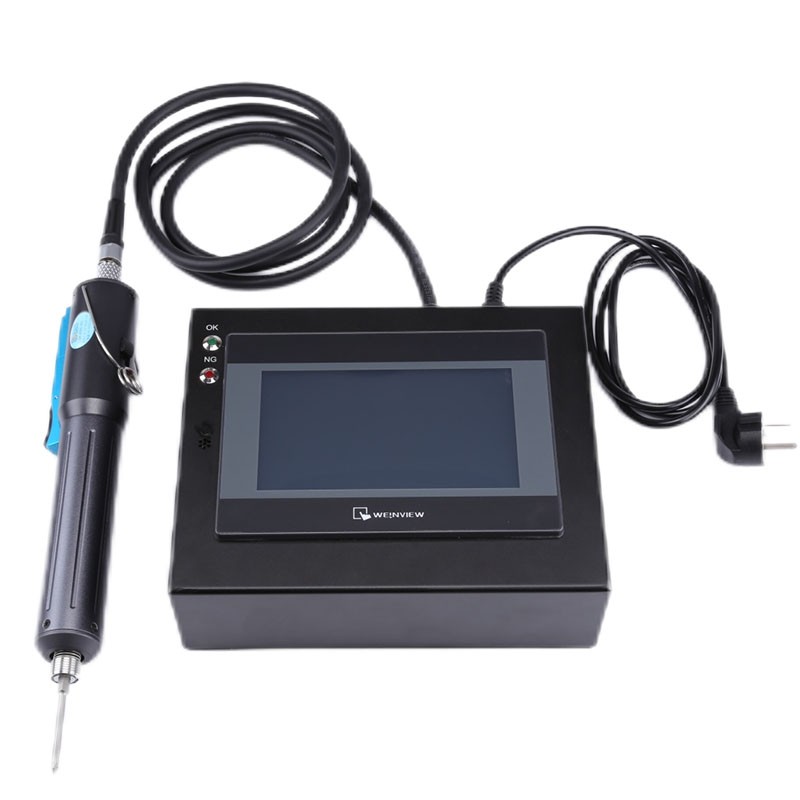

The intelligent electric screwdriver is a high-tech power tool that can precisely control torque, has programmable functions, and offers advanced features for efficient and accurate fastening operations.
SPECIFICATION
DP-HXL-001
1.5-8.0(Kgf.cm)
Automatic Mode: 30-1000
0.45
±5%
AC: 220
0.15-0.8(N.m)
High-speed Mode: 30-1800
DP-HXL-003
3.0-17(Kgf.cm)
Automatic Mode: 30-2000
0.65
±5%
AC: 220
0.3-1.7(N.m)
DP-HXL-003-W
3.0-13(Kgf.cm)
Automatic Mode: 30-2000
0.81
±5%
AC: 220
0.3-1.3(N.m)
DP-HXL-004
7.0-35(Kgf.cm)
Automatic Mode: 30-1000
0.65
±5%
AC: 220
0.7-3.5(N.m)
DP-HXL-004-W
7.0-28(Kgf.cm)
Automatic Mode: 30-1000
0.81
±5%
AC: 220
0.7-2.8(N.m)
DP-HXL-005
0.5-3.5(Kgf.cm)
Automatic Mode: 30-2000
0.5
±5%
AC: 220
0.05-0.35(N.m)
DP-HXL-006
5.0-25(Kgf.cm)
Automatic Mode: 30-1500
0.65
±5%
AC: 220
0.5-2.5(N.m)
DP-HXL-006-W
5.0-20(Kgf.cm)
Automatic Mode: 30-1500
0.81
±5%
AC: 220
0.5-2.0(N.m)
DP-HXL-007
8.0-60(Kgf.cm)
Automatic Mode: 30-600
0.65
±5%
AC: 220
0.8-6.0(N.m)
DP-HXL-007-W
8.0-48(Kgf.cm)
Automatic Mode: 30-600
0.81
±5%
AC: 220
0.8-4.8(N.m)
Applicable screw bit
Intelligent screwdrivers flow diagram
Functional characteristics
Traceable: The lock fastening result data can be displayed, stored, exported, and uploaded to the MES system;
Maintenance-free: Adopting high-end imported accessories with a long service life, eliminating the need for frequent inspection and maintenance;
Multi-task: IO or communication can switch 16 kinds of task parameters, and each task supports 5 tightening steps and 2 loosening steps;
With feedback: Judgment of floating height/slipping teeth, status light display, voice broadcast, and torque result feedback;
Easy to use: Simple installation, concise debugging interface, providing secondary development interfaces and technical support;
